34 33 081 Removing and refitting/replacing travel sensor
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Read and comply with GENERAL INFORMATION .
- Remove BRAKE MASTER CYLINDER .
IMPORTANT:
It is imperative that the travel sensor is tightened to the specified torque!
If the tightening torque applied is incorrect malfunctions can occur.

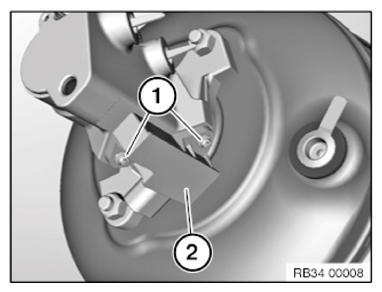

Undo screws (1) and remove travel sensor (2).
Installation note:
Replace screws.
Tightening torque: 34 31 2AZ .
The following service function must be performed after completing the repair work:
- Calibrate brake pedal travel sensor.
