1722010 Removing and installing/replacing transmission oil cooler (ALPINA B7 N63): Recycling

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Transmission oil escapes when oil lines are released. Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations.

Release screw (1) on line clip.

Tightening torque 17 22 1AZ .

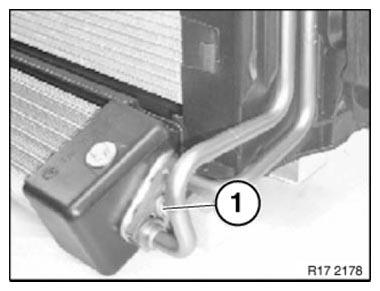

Fig 1: Identifying Line Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on transmission oil cooler.

Tightening torque 17 22 2AZ .

Detach oil lines from transmission oil cooler.

Replace O-rings.

Seal oil lines with suitable sealing plugs.

Catch and dispose of escaping transmission oil.

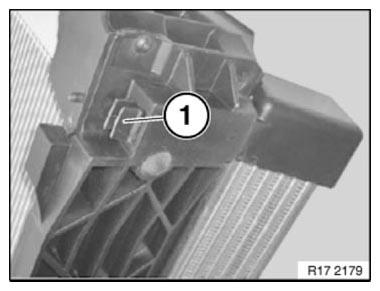

Fig 2: Identifying Transmission Oil Cooler Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the right side, the procedure for the left side is identical.

Press together the retaining clips (1) on the left and right

Remove transmission oil cooler towards front.

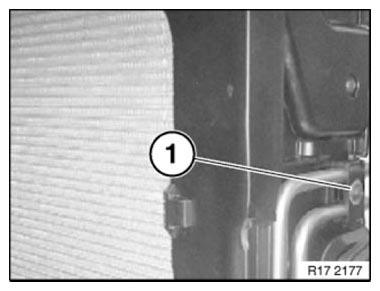

Fig 3: Identifying Transmission Oil Cooler Mounting Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Only when replacing transmission oil cooler, modify holders on left and right.

Release screw (1).

Tightening torque 17 22 3AZ .

Remove holders on left and right.

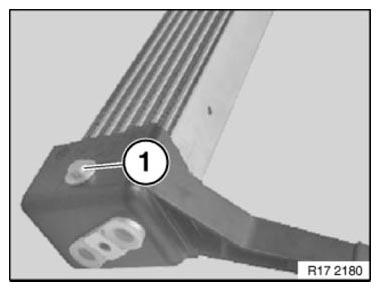

Fig 4: Identifying Transmission Oil cooler Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After completing work, check transmission oil level and top up transmission oil if necessary.
