Checking pressure drop in cooling system

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Open the sealing cap on the coolant expansion tank. Fit special tools (1) 17 0 101 and (2) 17 0 113.

Build up EXCESS PRESSURE , wait approx. 2 minutes.

Cooling system is impervious to watertightness if pressure drop is max. 0.1 bar.

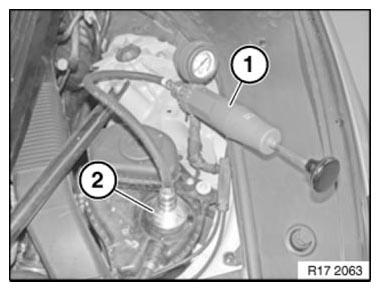

Fig 1: Checking Pressure Drop In Cooling System Using Special Tools (17 0 101 And 17 0 113)
G06889269Courtesy of BMW OF NORTH AMERICA, INC.
