1700039 Venting and filling cooling system with vacuum filling unit: Application

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Connect filling unit (1) with adapter (2) 17 0 113 to coolant expansion tank.

Shutoff valves (A) and (B) must be closed.

Fig 1: Identifying Coolant Filling Unit With Adapter And Shut-Off Valves

G06889242

Courtesy of BMW OF NORTH AMERICA, INC.

Connect venturi nozzle (1) to filling unit (2).

Fig 2: Identifying Coolant Filling Unit With Venturi Nozzle

G06889243

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air (1) and open shutoff valve (B).

The venturi nozzle produces a flow noise.

Fig 3: Identifying Shut-Off Valve With Compressed Air Line

G06889244

Courtesy of BMW OF NORTH AMERICA, INC.

Then open shutoff valve (A) until the filling hose (1) is free of bubbles. Close shutoff valve (A) again. The filling hose (1) is vented in this way.

Fig 4: Identifying Coolant Filling Hose With Shut-Off Valve

G06889245

Courtesy of BMW OF NORTH AMERICA, INC.

Shutoff valve (B) remains open. Approx. 1 minute. Generate vacuum in cooling circuit. The final vacuum is reached at a vacuum of -0.7 to -0.95 bar. Green scale on the vacuum meter.

NOTE: The coolant hoses contract during vacuum build-up.

Then close shutoff valve (B) again.

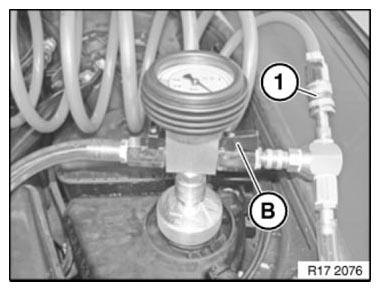

Fig 5: Identifying Coolant Shut-Off Valves

G06889246

Courtesy of BMW OF NORTH AMERICA, INC.

Both shutoff valves (A) and (B) must be closed. Then seal Venturi nozzle (1).

Fig 6: Identifying Venturi Nozzle With Shut Off Valves

G06889247

Courtesy of BMW OF NORTH AMERICA, INC.

The cooling system must hold the vacuum for 30 seconds. If the needle in the vacuum meter falls, this indicates a leak in the cooling system.

If the vacuum remains constant, proceed with filling.

In the event of leaks, check COOLING SYSTEM FOR LEAKS .

Fig 7: Checking Cooling System For Leaks

G06889248

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There must be sufficiently PREMIXED COOLANT in the filling unit container, 1 - 2 liters more than the vehicle filling capacity.
Position the filling unit container at the same height as the coolant expansion tank.

Shutoff valve (B) remains closed during the filling process.

To fill the cooling system, open shutoff valve (A) to filling unit container.

Coolant is now added.

The filling process is finished when the needle in the vacuum meter is at 0 bar or no longer falls.

Fig 8: Identifying Cooling System Shut-Off Valves

G06889249

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, reduce remaining vacuum. Open shutoff valve (B) to do so.

Remove filling unit with adapter from expansion tank.

Adjust coolant level to max.

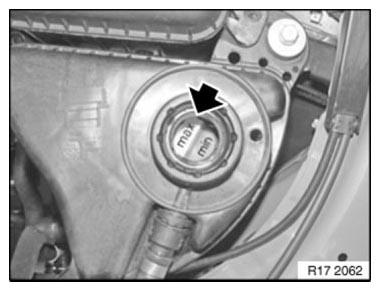

Fig 9: Adjusting Coolant Level To Maximum

G06889250

Courtesy of BMW OF NORTH AMERICA, INC.

Close coolant expansion tank.

Installation note:

Close the sealing cap (1) until the arrows line up.

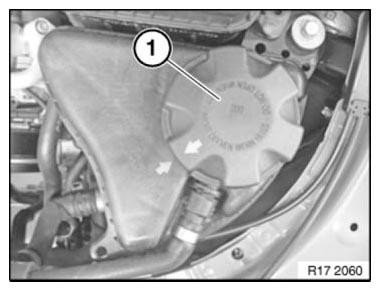

Fig 10: Identifying Coolant Expansion Tank Sealing Cap

G06889251

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of cooling system.

Check COOLING SYSTEM FOR LEAKS .
