11 40 000 Checking engine oil pressure

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 050
13 3 061
13 3 063
13 6 051
13 6 054

NOTE: For engine oil pressure to be checked, oil pressure switch must be removed and special tools must be installed and connected.

To avoid an excess discharge of oil when removing oil pressure switch:

Unscrew oil filter cap; the engine oil flows out of the oil filter housing into the oil sump.

Installation:

Replace sealing ring.

Tightening torque 11 42 2AZ. Refer to 11 42 OIL FILTER AND PIPES .

Remove oil pressure switch.

Fig 1: Removing Oil Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 27 Nm.

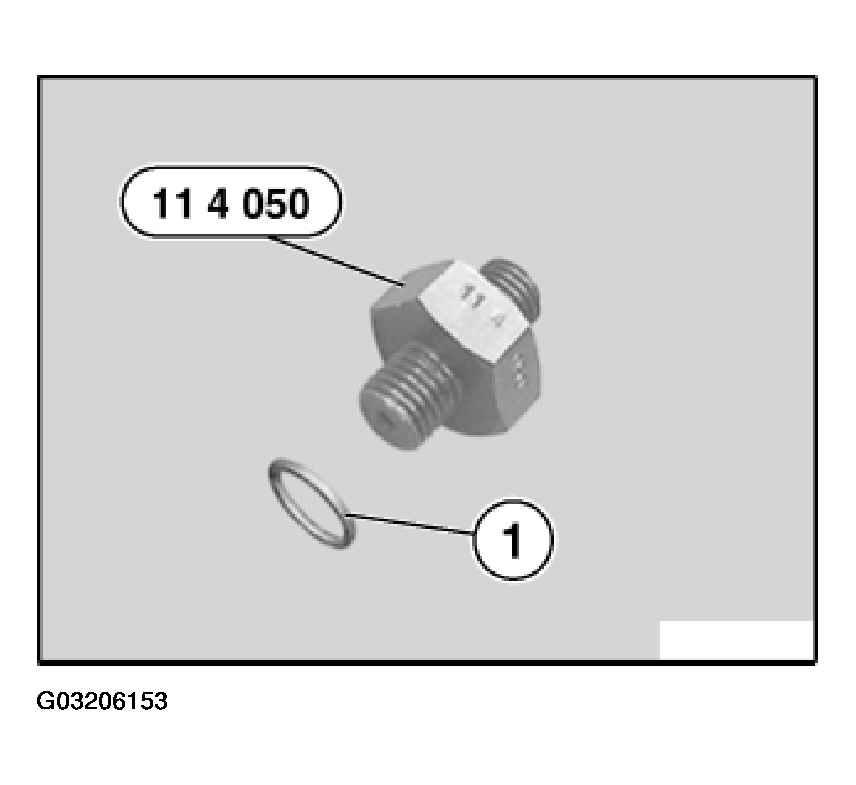

Install special tool 11 4 050 with sealing ring (1) in place of oil pressure switch.

Checking engine oil pressure with DIS Tester

Attach special tool 13 6 054 with sealing ring (1) and special tool 13 6 051 and connect to DIS Tester.

Checking engine oil pressure with pressure gauge

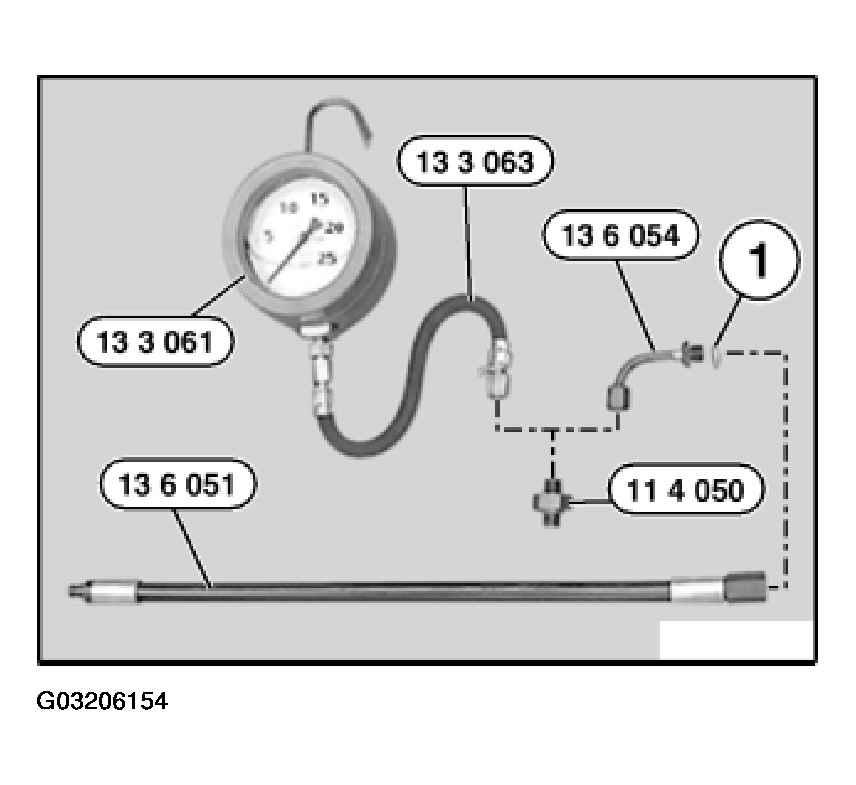

Install special tool 13 3 063 and special tool 13 3 061 (pressure gauge).

Fig 2: View Of Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Start engine and check engine oil pressure.

Specified value, refer to 11 41 OIL PUMP WITH STRAINER AND DRIVE S62 .
