11 13 540 Removing and installing/replacing left oil circuit changeover valve (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew and remove splash guard.

Drain engine oil.

NOTE: Engine oil sprays out when the oil circuit changeover valve is pulled out.
Have a cleaning cloth ready.

Unfasten cable clips (1).

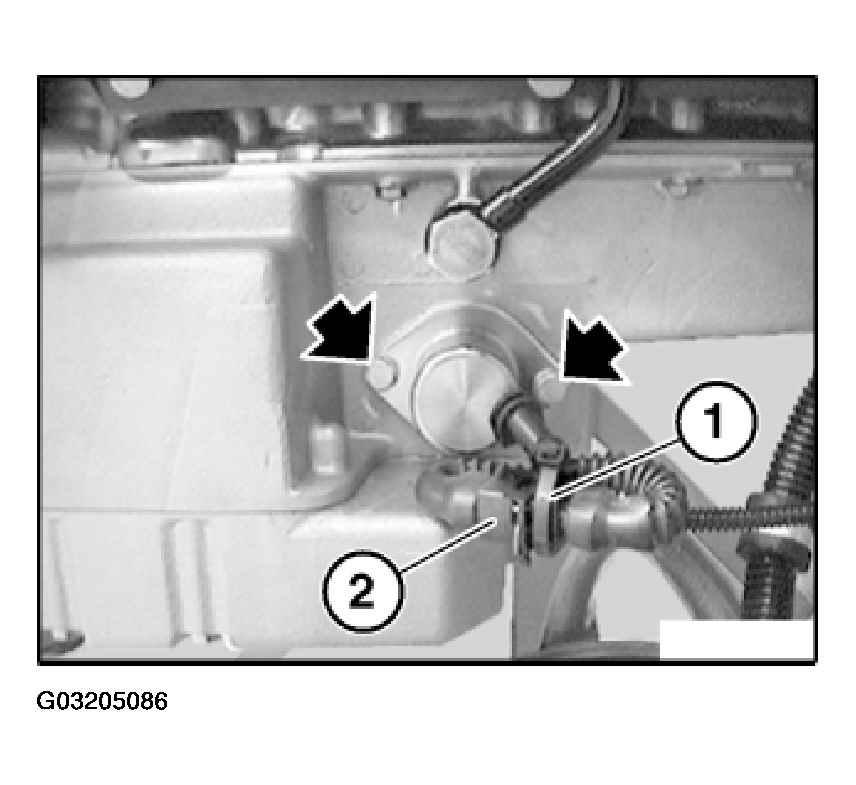

Fig 1: Removing Oil Circuit Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (2).

Unfasten screws.

CAUTION: Do not pull on cable.

Cover oil circuit changeover valve with a cleaning cloth and pull out carefully.

CAUTION: O-rings (1), (2) and (3) have different diameters.
O-rings can be damaged when the oil circuit changeover valve is pulled out.

Installation:

Replace O-rings (1), (2) and (3).

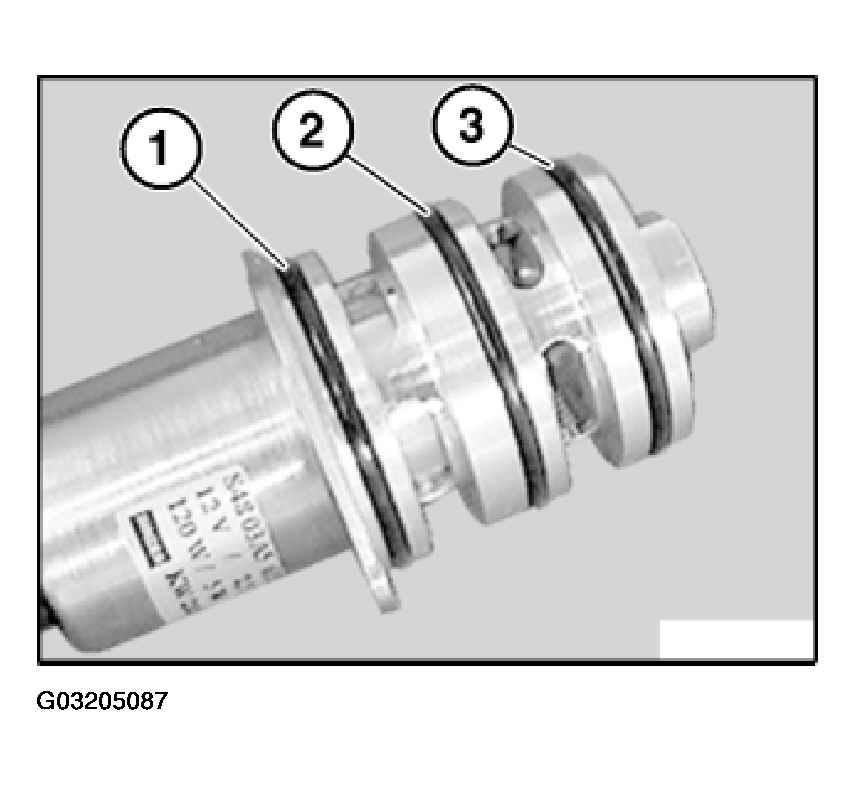

Fig 2: Identifying O-Rings

Courtesy of BMW OF NORTH AMERICA, INC.
