11 13 010 Removing and installing/replacing upper oil sump section (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 0 200
00 0 201
00 0 202
00 0 204
00 0 206
00 2 030
11 0 260
31 2 220

NOTE: To remove the upper oil sump section, the front axle support must be lowered.
There is no need to perform a front axle alignment check.

Lift engine hood into assembly position.

Open cap (1), draw off hydraulic fluid from supply reservoir for power steering pump. Dispose of hydraulic fluid.

Observe country-specific waste-disposal regulations.

Refit cap (1).

Detach supply reservoir from carrier.

NOTE: Lines remain connected.

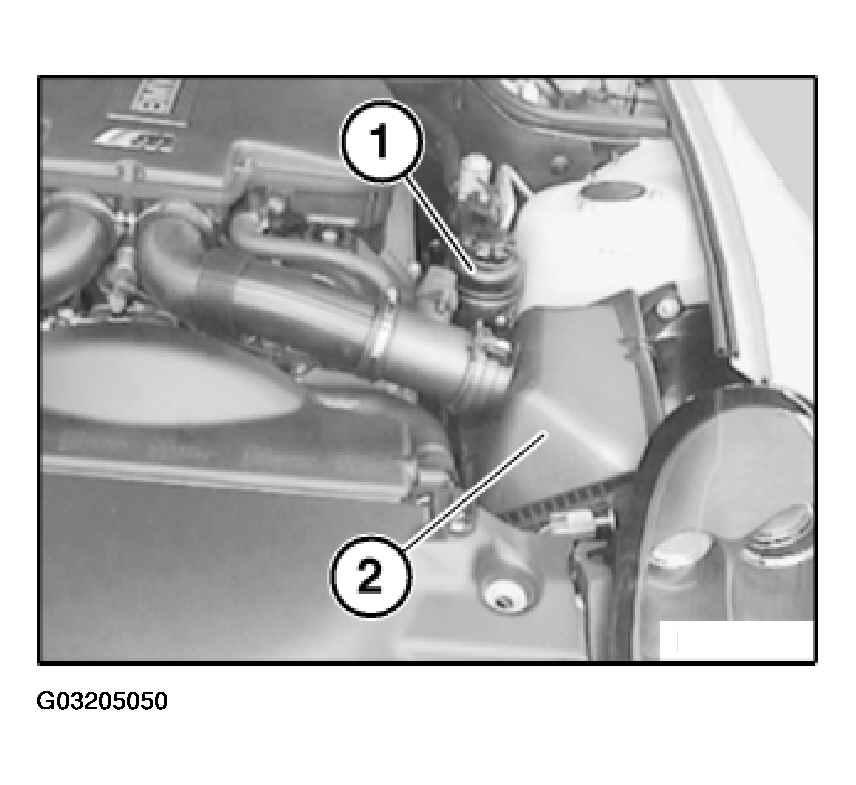

Remove upper section of intake filter housing (2) with air-mass flow sensor.

Fig 1: Identifying Cap And Intake Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Open main flow oil filter cover.

Engine oil flows out of the oil filter housing and back into the oil pan.

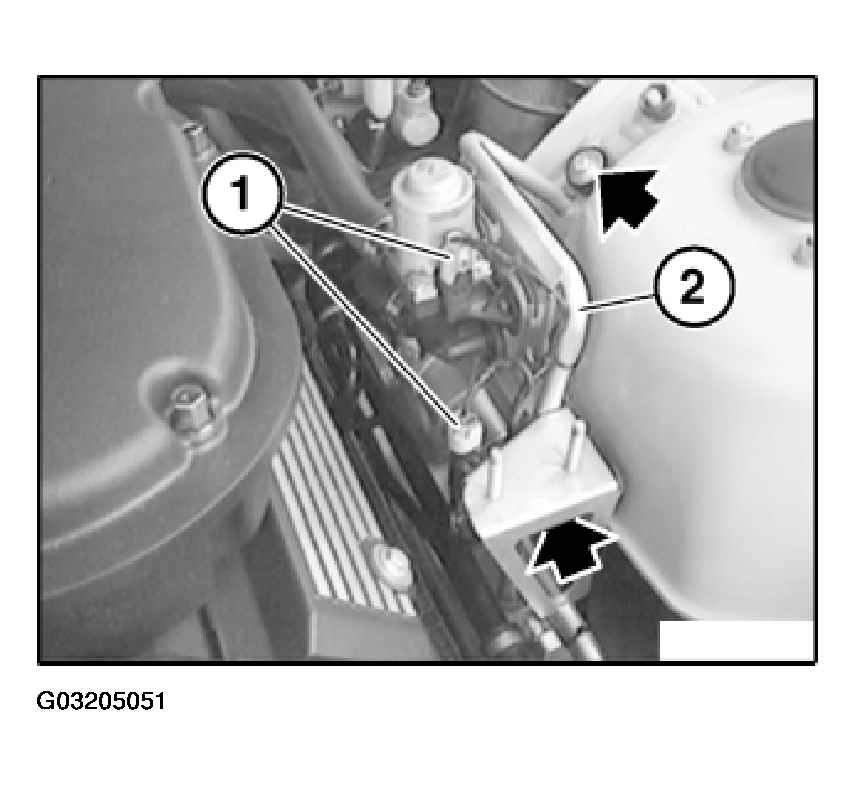

Disconnect plug (1). Disconnect cable from holder (2).

Fig 2: Disconnecting Plug And Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Oil lines of main flow oil filter are secured with two clamps to holder (2).
Holder (2) is not screwed to engine carrier but rather secured with two pins.

Remove holder (2).

Release nuts on engine mounts on left and right.

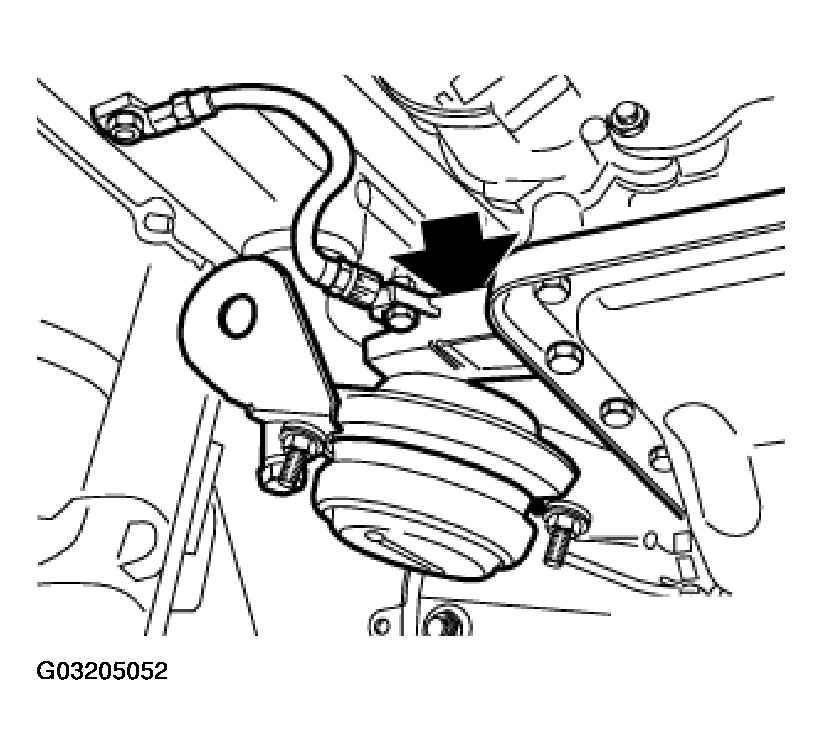

Fig 3: Releasing Nuts On Engine Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Risk of damage.

Engine must "not" be supported on side walls.

When oil sump is removed, engine must be supported on engine carrier.

CAUTION: Risk of damage.

It is very easy for paint damage to occur when special tool 00 0 200 is attached.

Protect spring strut domes against paint damage.

Assemble special tool 00 0 200 with special tool 00 0 201 / 00 0 202 / 00 0 204 / 00 0 206.

Fig 4: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Risk of damage. Do not damage lines, cables or hoses.

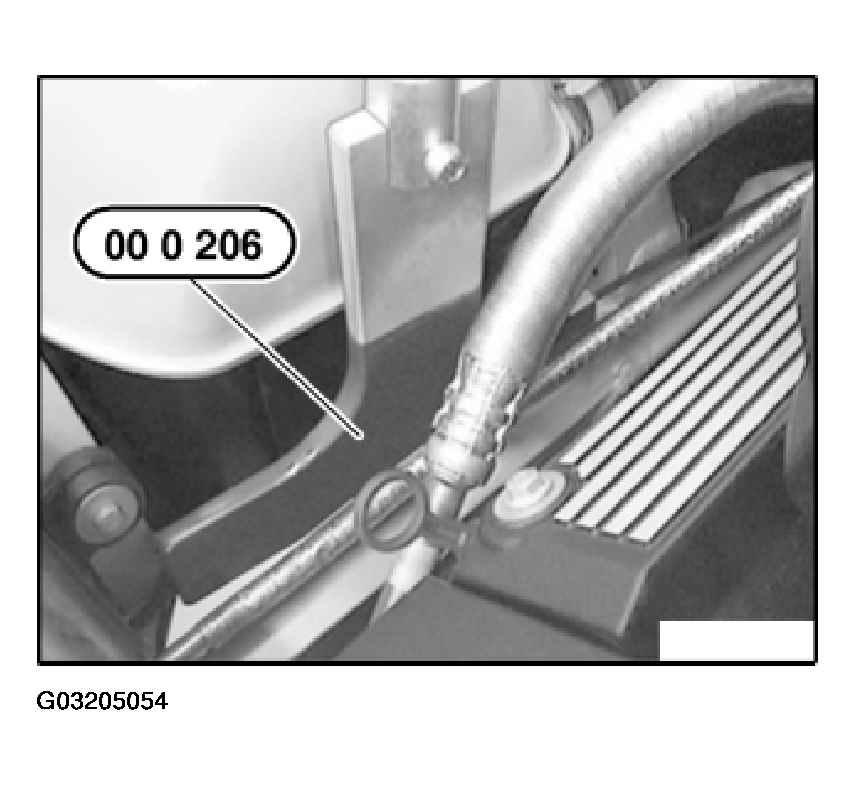

Contact faces of special tool 00 0 206 must rest on engine carrier.

Fig 5: Locating Contact Faces

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew and remove splash guard.

Drain coolant.

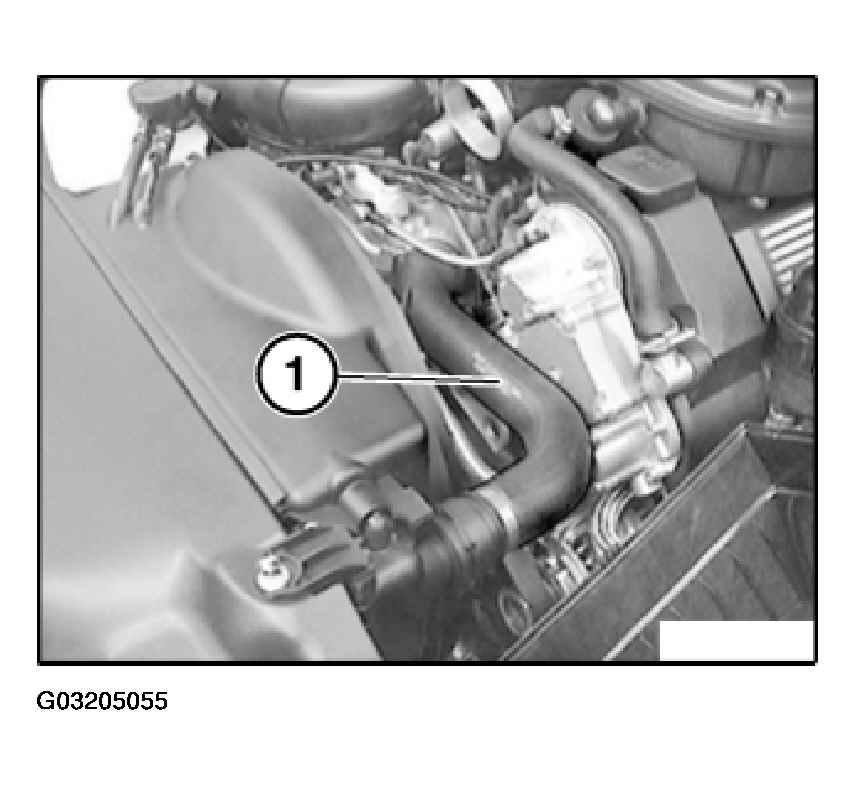

Remove coolant hose (1).

Fig 6: Removing Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Suspend engine only from suspension lugs at front and rear designed for this purpose.

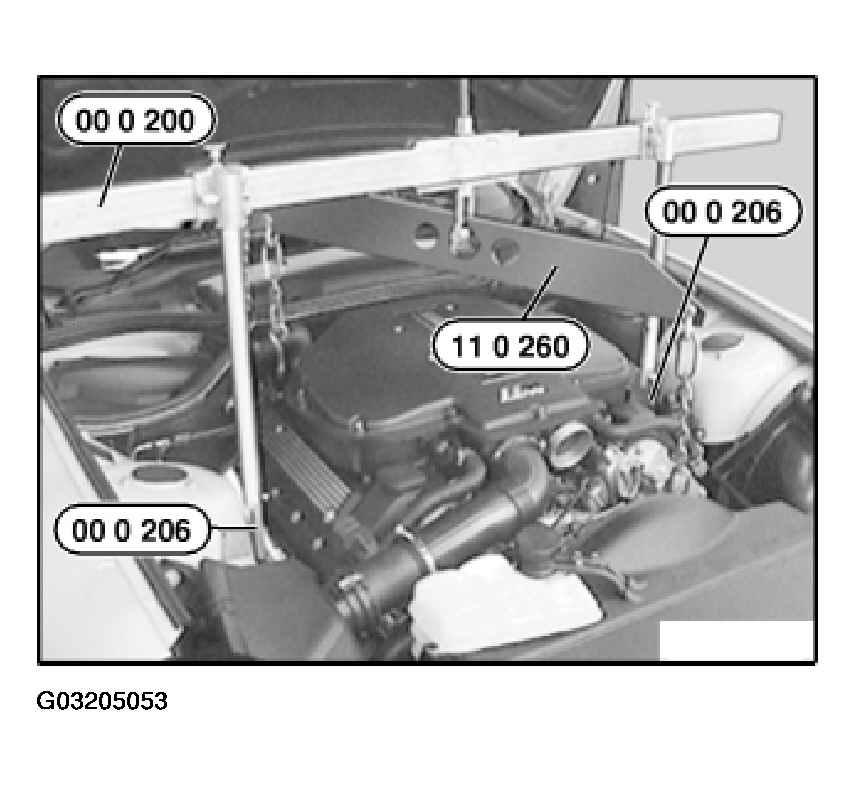

Suspend engine at front and rear from special tool 11 0 260.

Fig 7: Suspending Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Raise engine with special tool 00 0 200 approx. 6 to 8 mm.

Fig 8: Raising Engine

Courtesy of BMW OF NORTH AMERICA, INC.

Detach universal joint from steering gear. Refer to STEERING SPINDLE .

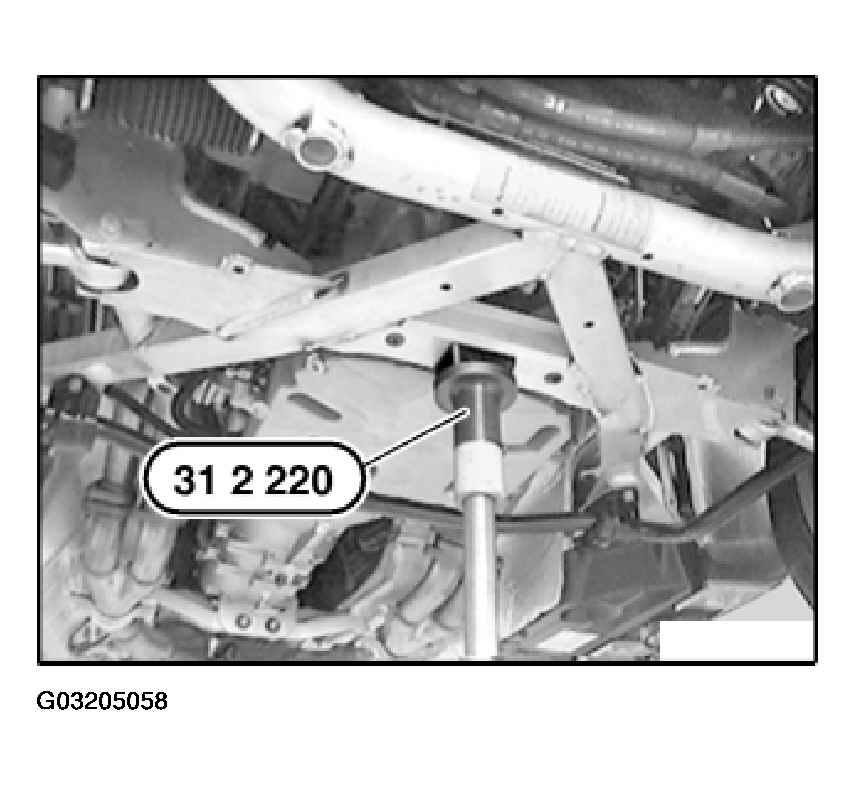

Support front axle support with special tool 00 2 030 in conjunction with special tool 31 2 220.

Fig 9: Supporting Front Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.

Detach stabilizer bar from front axle support.

Detach front axle support from engine carrier and lower approx. 100 mm.

Removal and installation instructions are described in the work step Replacing front axle support. Refer to FRONT SUSPENSION ASSEMBLY .

Removal

Removal of upper oil sump section is described separately from installation.

NOTE: Upper oil sump section can be removed and installed with installed oil pump.

Open oil drain plug and drain off engine oil.

Remove lower oil sump section.

Pretension belt tensioner and remove A/C compressor drive belt from belt pulleys.

Detach belt tensioner from upper oil sump section.

Detach oil dipstick guide tube from cylinder head and from upper oil sump section.

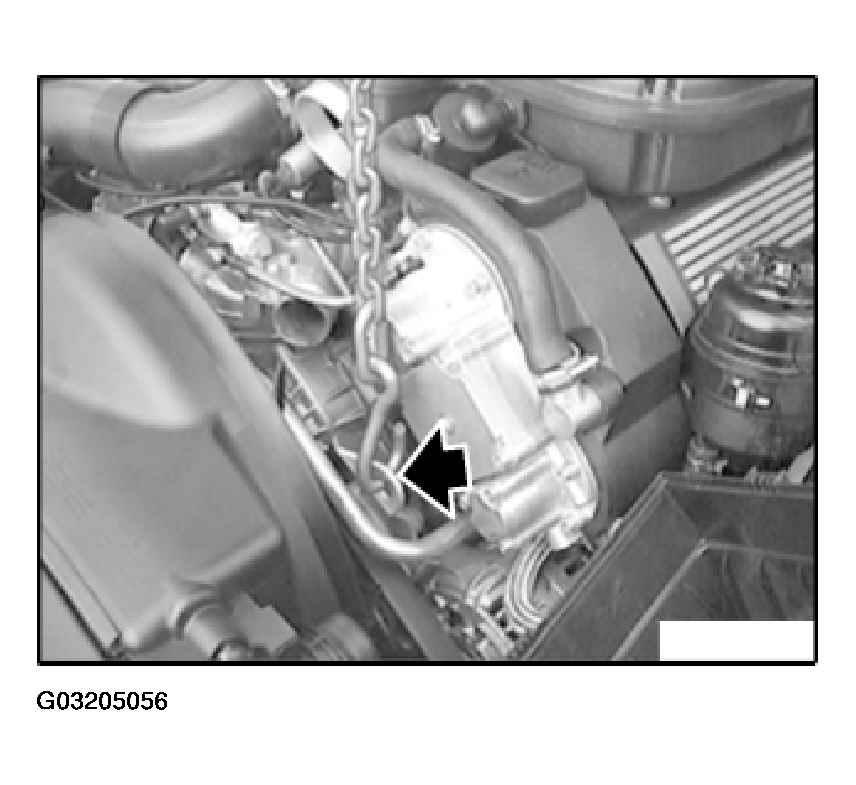

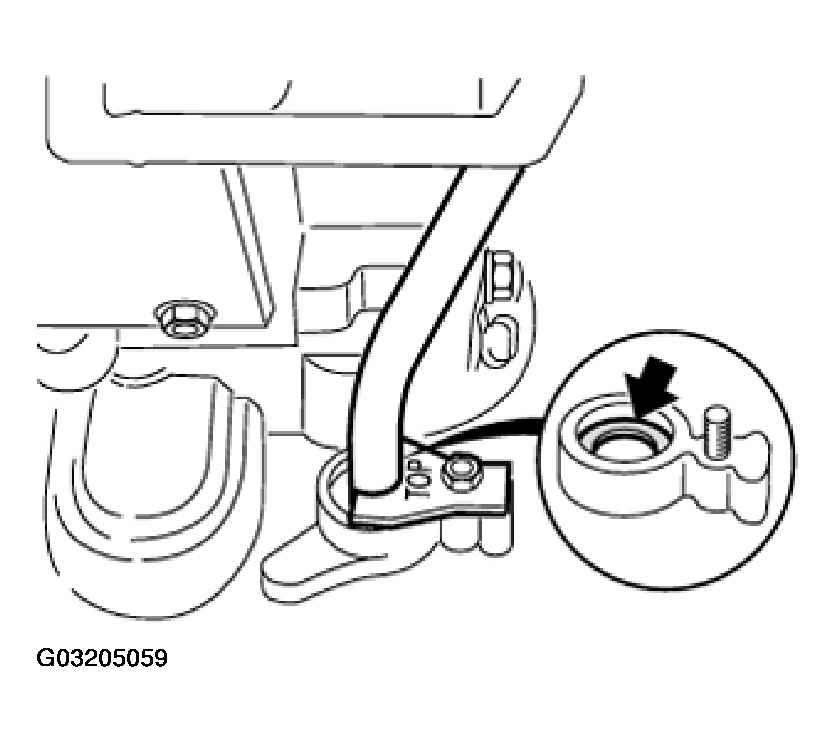

Fig 10: Detaching Oil Dipstick Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil dipstick guide tube.

Installation:

Replace O-ring.

Insert O-ring and washer in oil sump bore.

Detach return line from upper oil sump section.

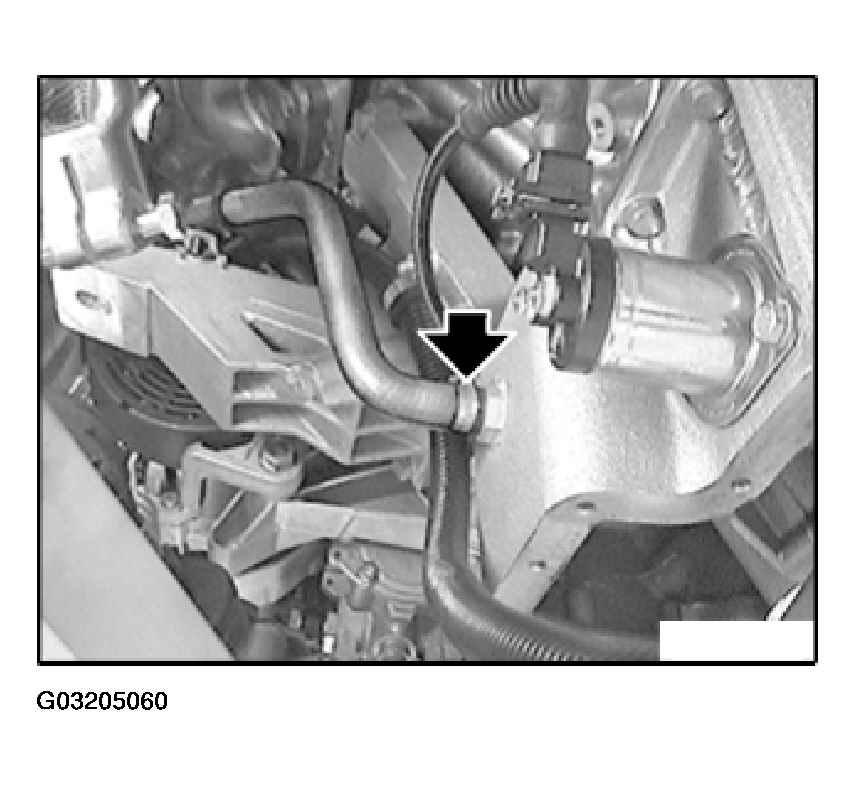

Fig 11: Detaching Return Line From Upper Oil Sump Section

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The upper oil sump section and the cover (1) are machined together and must not be replaced individually.

CAUTION: A residual amount of oil emerges when cover (1) is detached.
Have a container and cloth ready.

Remove cover (1).

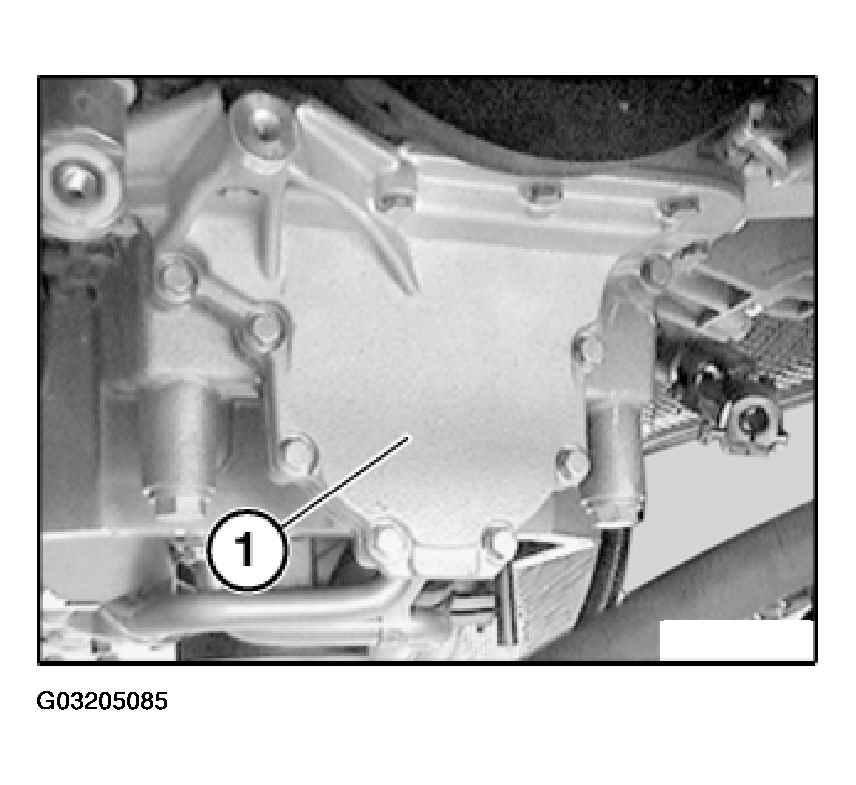

Fig 12: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

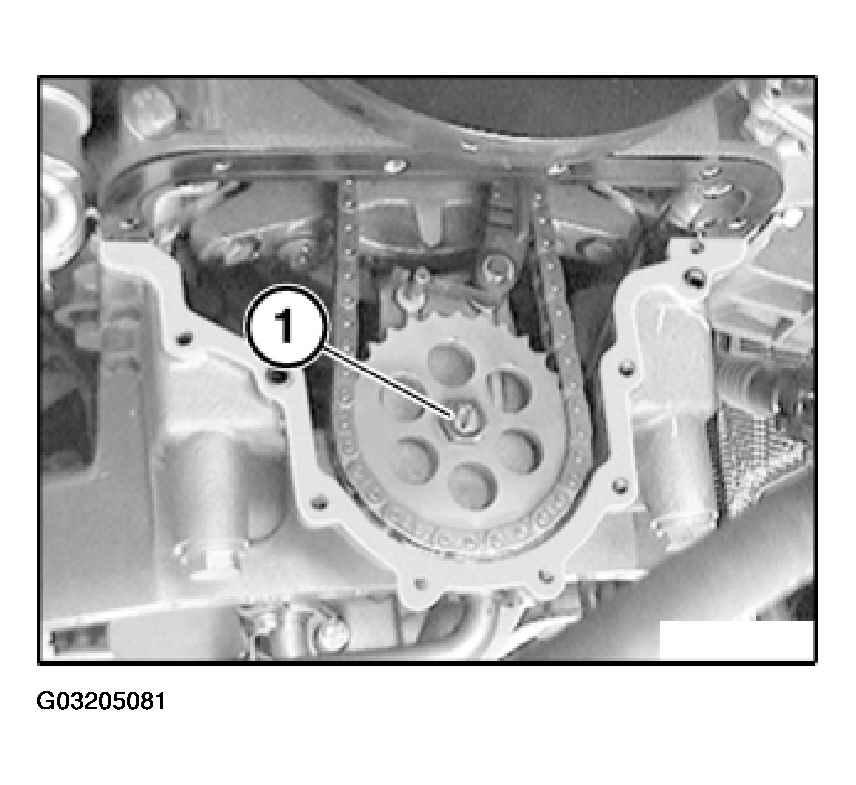

Release hexagon nut (1).

Remove oil pump sprocket together with chain from oil pump shaft.

Feed out oil pump sprocket.

Fig 13: Removing Oil Pump Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: A residual amount of oil emerges when the plug (1) is removed.
Have a container and cloth ready.

Open plug (1) on unrefined oil line.

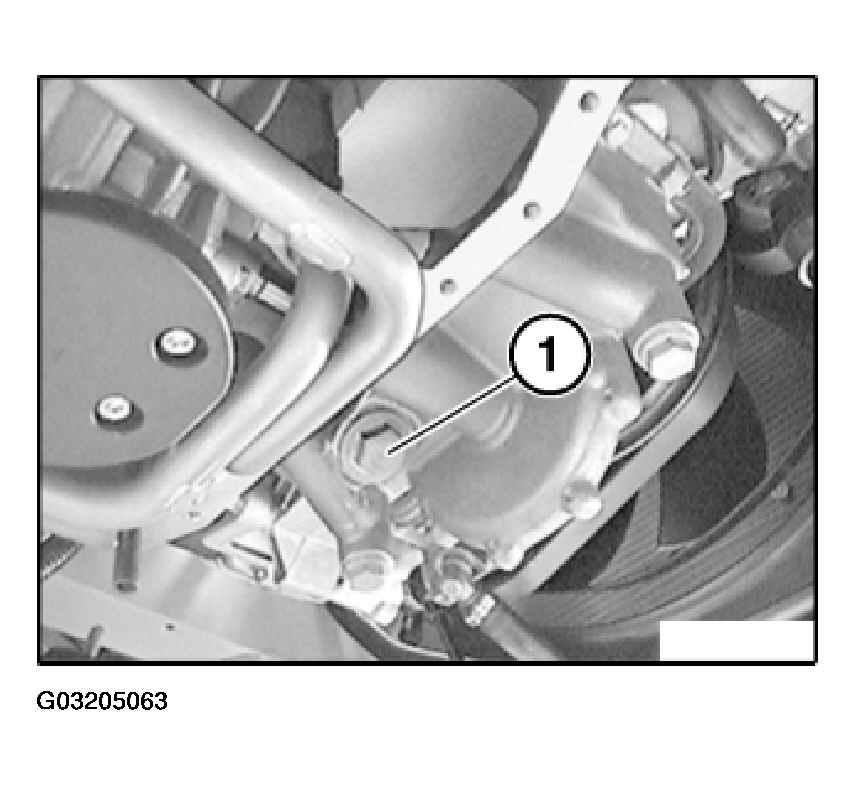

Fig 14: Identifying Plug On Unrefined Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removing the unrefined oil line (1) makes it significantly easier to feed out the upper oil sump section.
If the O-rings are stuck fast in such a way that the unrefined oil line (1) cannot be disconnected:
Disconnect unrefined oil line (1) after removing upper oil sump section.

Pull out unrefined oil line (1).

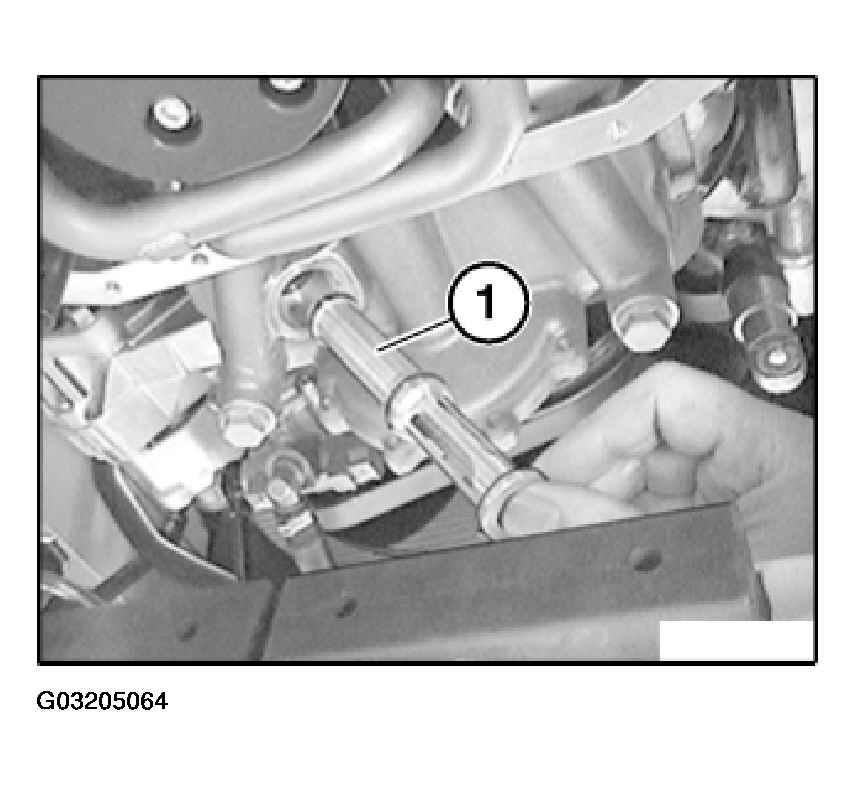

Fig 15: Removing Unrefined Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

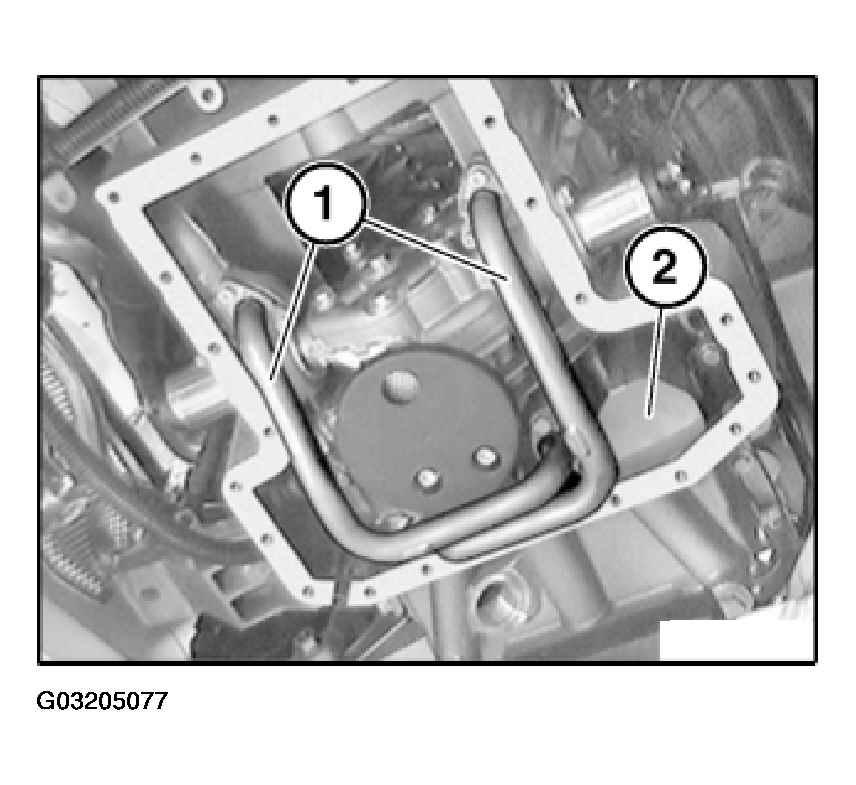

Disconnect oil lines (1).

Remove baffle plate (2).

Fig 16: Removing Baffle Plate

Courtesy of BMW OF NORTH AMERICA, INC.

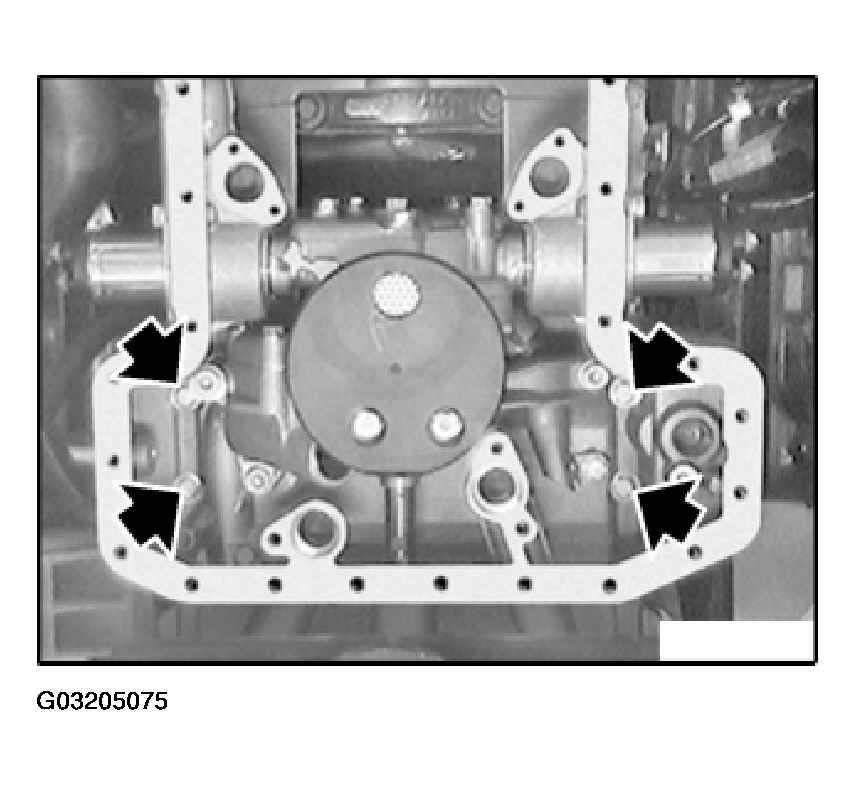

Unfasten screws inside oil sump.

Fig 17: Unfastening Screws Inside Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

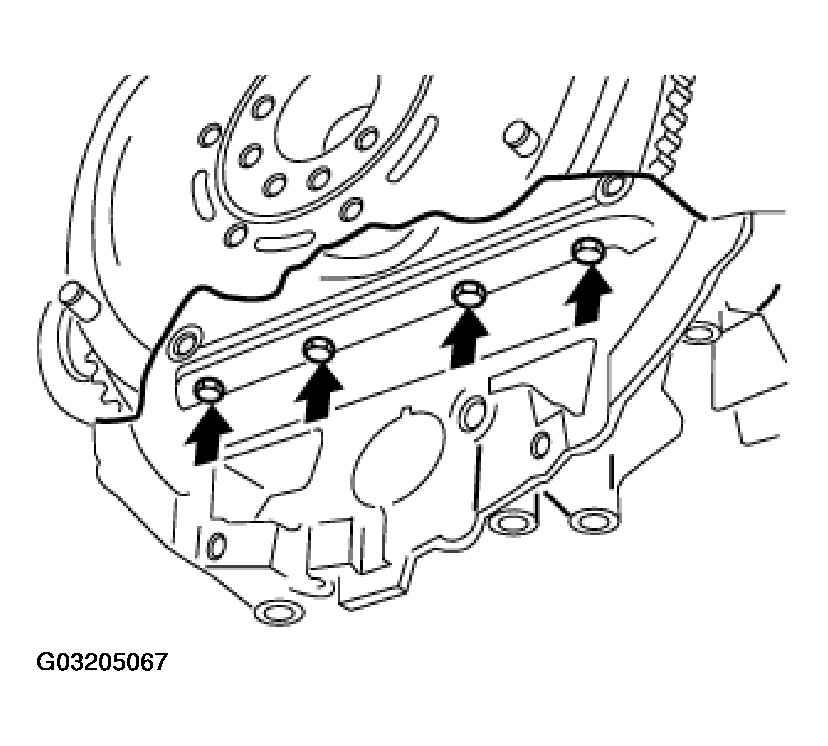

Release screws for end cover.

Fig 18: Releasing Screws For End Cover

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Oil line (1) is screwed to upper oil sump section.

Release remaining screws in upper oil sump section.

Pull upper oil sump section downwards at an angle until oil line (1) is no longer secured in bore (2).

Fig 19: Identifying Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper oil sump section.

If upper oil sump section has to be replaced:

Convert or replace following components:

Oil circuit changeover valves
Oil pump drive shaft
Oil pump
Oil line (return)
Oil line (governing line)
Chain tightener for oil pump chain
Strainers, seal plugs and screwed glands

Replace all seals and O-rings.

If necessary, remove drive shaft:

Grip at dihedral section (1) of drive shaft and release at hexagon section (2).

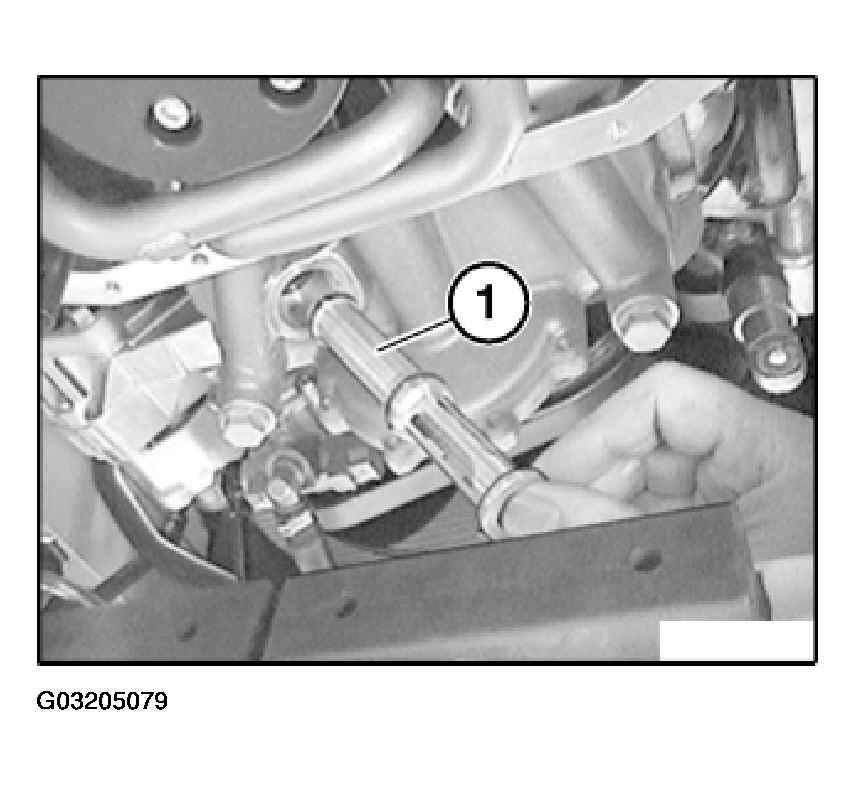

Fig 20: Removing Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque for drive shaft 50 Nm.

If necessary, remove snorkel and oil pump:

Detach snorkels (1).

Installation:

Replace O-ring on snorkel (1).

Remove oil pump (2).

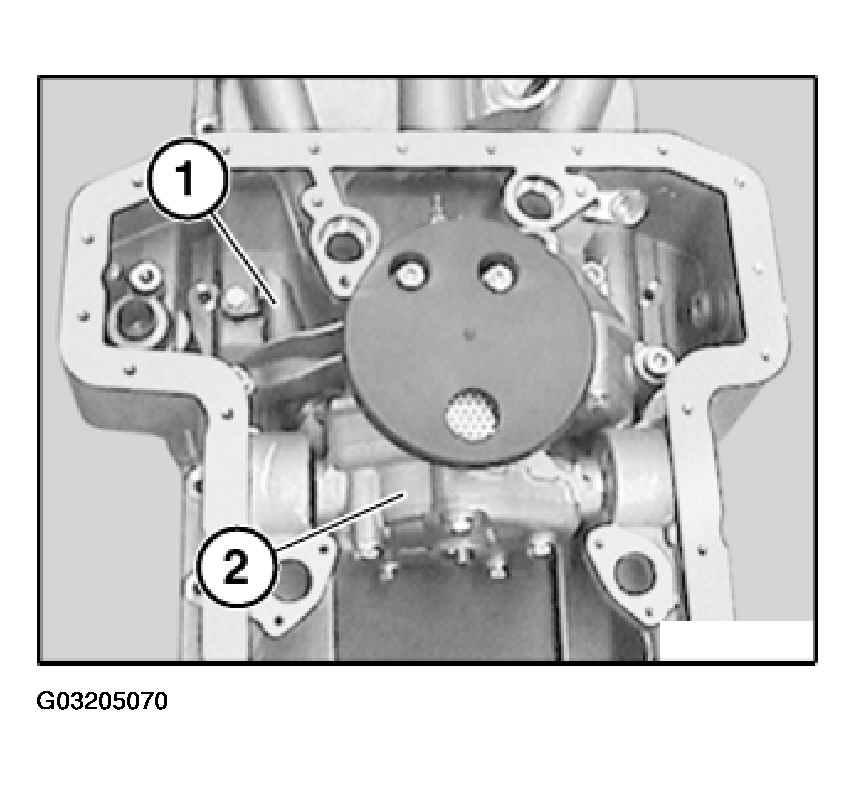

Fig 21: Locating Snorkel & Drive Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check dowel sleeves for damage and correct installation position.

NOTE: The governing line (1) may be very slightly bent when the upper oil sump section is removed.

Check governing line (1), replace if necessary.

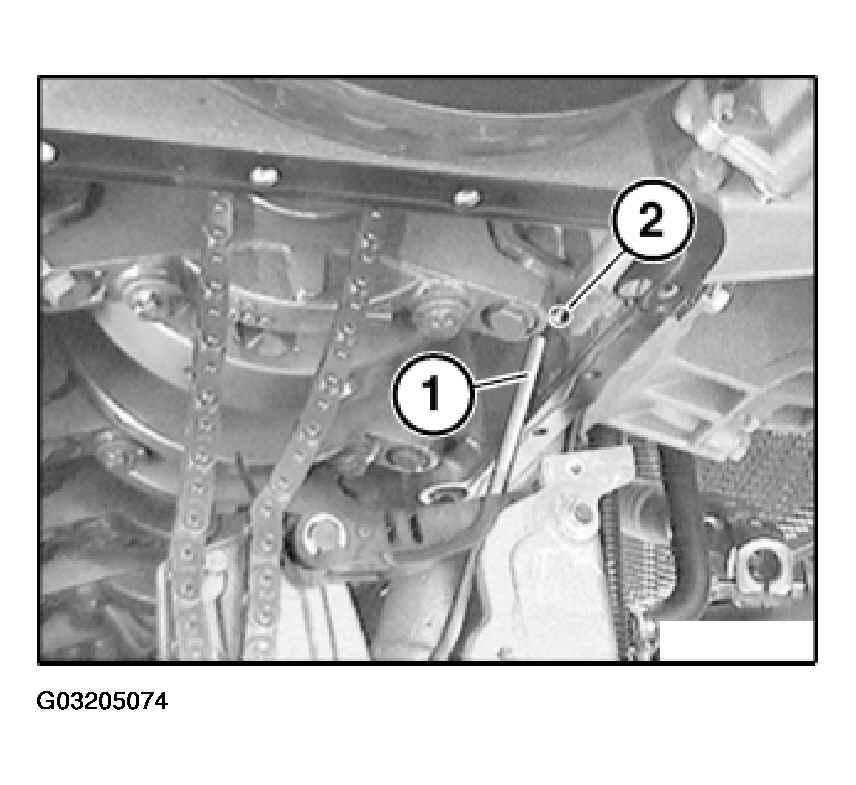

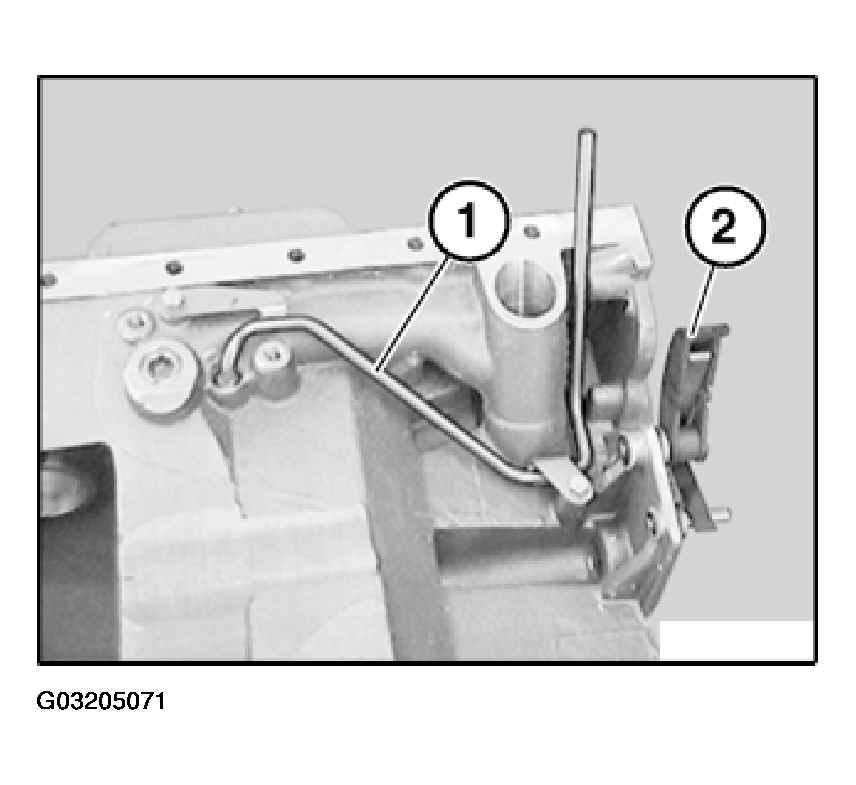

Fig 22: Checking Governing Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-ring on governing line (1).

Check chain tightener (2) of oil pump chain, replace if necessary.

Installation

Installation of upper oil sump section is described separately from removal.

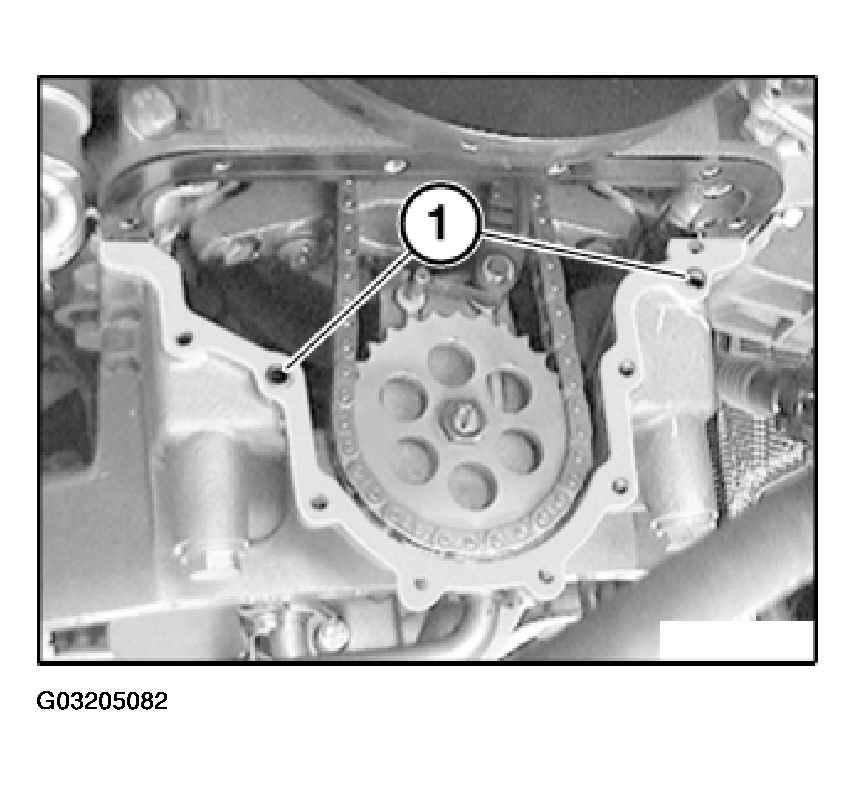

CAUTION: Groove (1) must be free of dirt and sealing compound.
Condensate from the intake air manifold and oil from the VANOS adjustment unit is routed back to the oil sump through the groove (1).

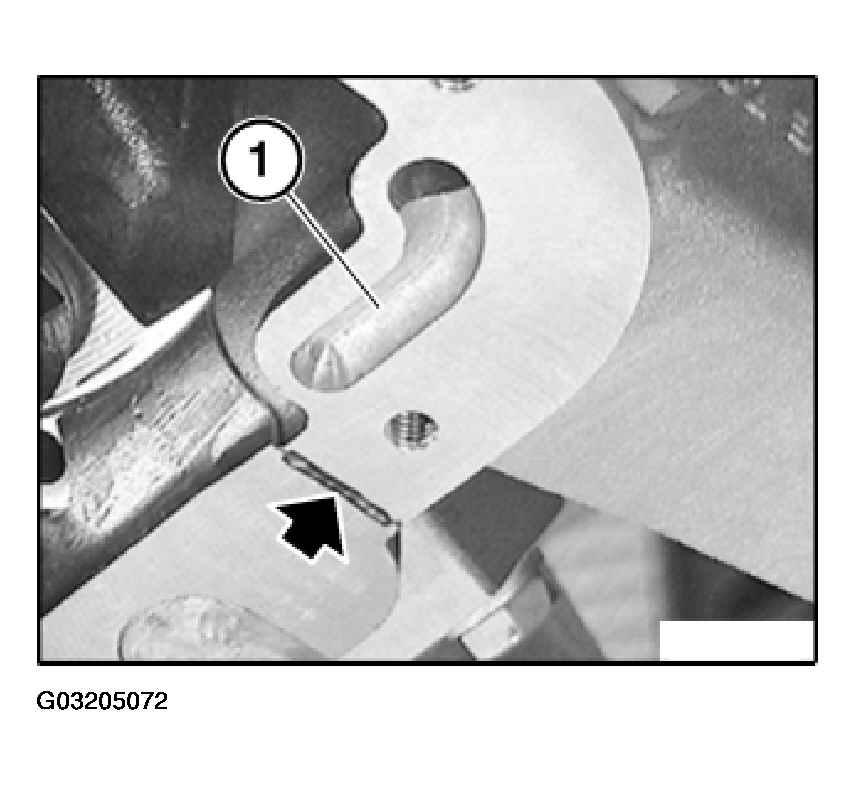

Fig 23: Identifying Groove

Courtesy of BMW OF NORTH AMERICA, INC.

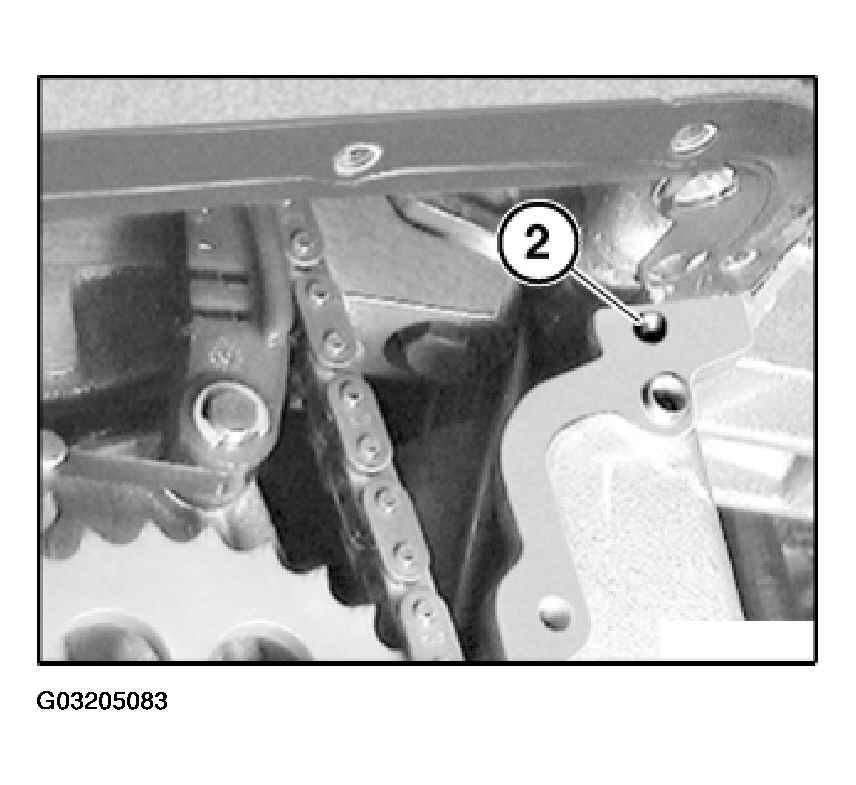

Sealing faces clean and free of seal debris.

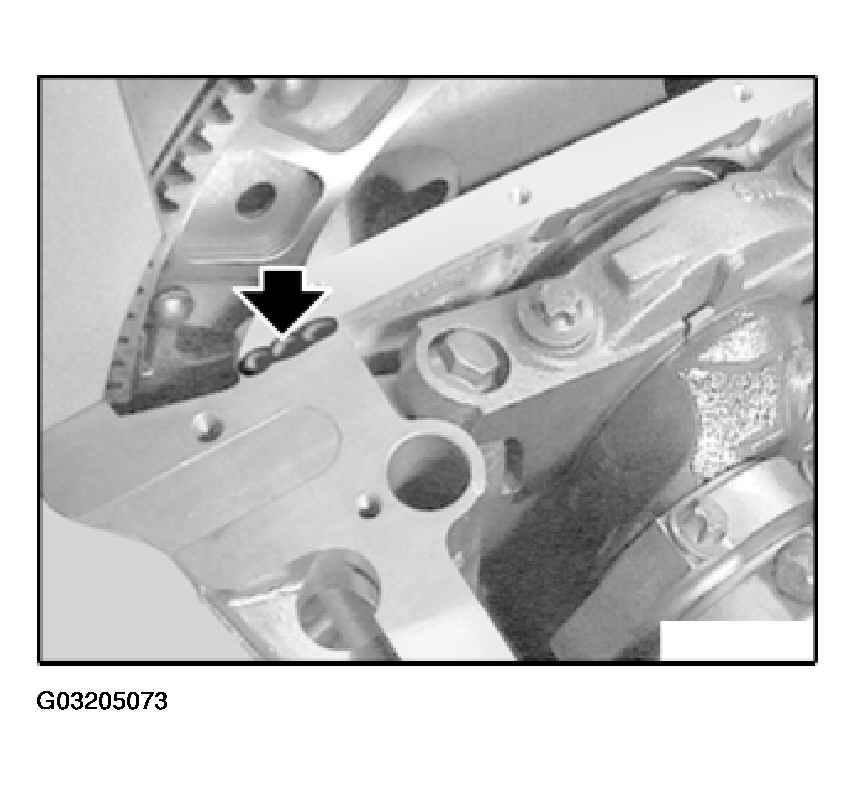

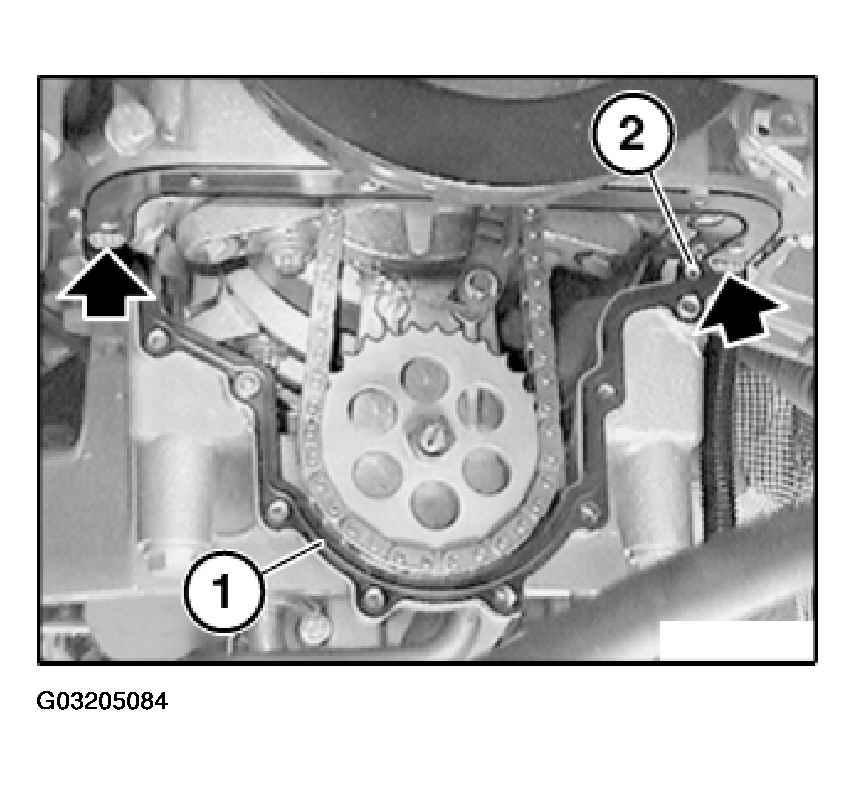

At contact edges between engine block and timing case cover, apply a thin bead of sealing compound Drei Bond 1209 (refer to BMW Parts Service ).

At contact edges between engine block and end cover, apply a thin bead of sealing compound Drei Bond 1209 (refer to BMW Parts Service .

Replace oil sump gasket.

Fig 24: Identifying Contact Edges

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The governing line (1) may be very slightly bent when the upper oil sump section is installed.

Feed in upper oil sump section at an angle until oil line (1) can be joined in bore (2).

Fig 25: Identifying Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

Install upper oil sump section
Insert all screws in upper oil sump section.
Insert screws in transmission end without preload at this stage.
Tighten down screws in engine end.
Tighten down screws in transmission end.

Insert screws inside oil sump and tighten down.

Fig 26: Inserting Screws Inside Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

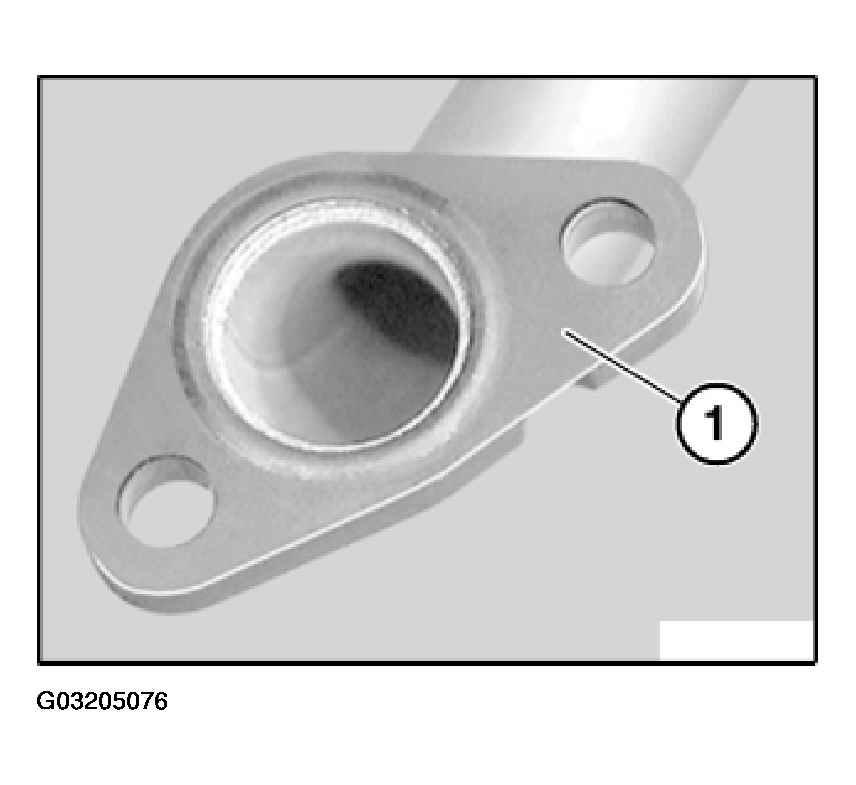

Replace O-rings on oil pipes.

CAUTION: Risk of mixing up parts.

The seals (1) for the left and right oil pipes are the same but the direction of installation is different.

The outside and inside contours of the seal (1) must match the oil pipe exactly.

Fig 27: Identifying Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Install baffle plate (2).

Connect oil lines (1).

Fig 28: Identifying Baffle Plate And Oil Lines

Courtesy of BMW OF NORTH AMERICA, INC.

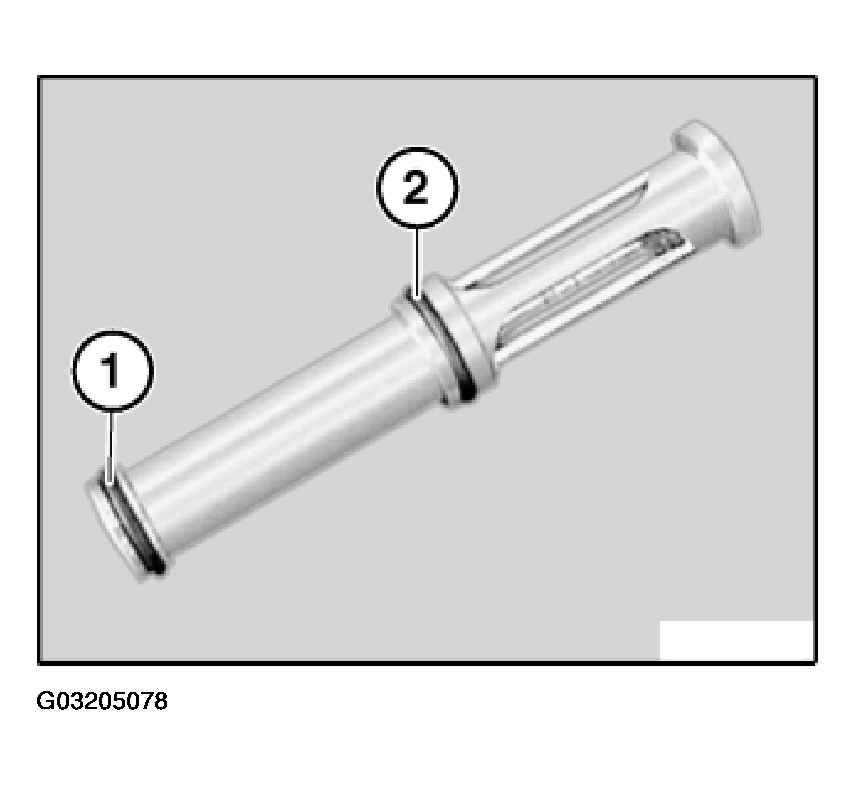

CAUTION: O-rings (1 and 2) have different diameters.

Replace O-rings (1 and 2) and lubricate slightly.

Fig 29: Replacing O-Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Connect unrefined oil line (1).

Fig 30: Connecting Unrefined Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring.

Install plug (1) in unrefined oil line and tighten down.

Fig 31: Installing Plug In Unrefined Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 50 Nm.

Push oil pump sprocket together with chain onto oil pump shaft.

Fig 32: Installing Oil Pump Sprocket

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate oil pump shaft until oil pump sprocket snaps audibly into place.

Tighten down hexagon nut (1).

Check dowel sleeves (1) for damage and correct installation position.

Fig 33: Checking Dowel Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

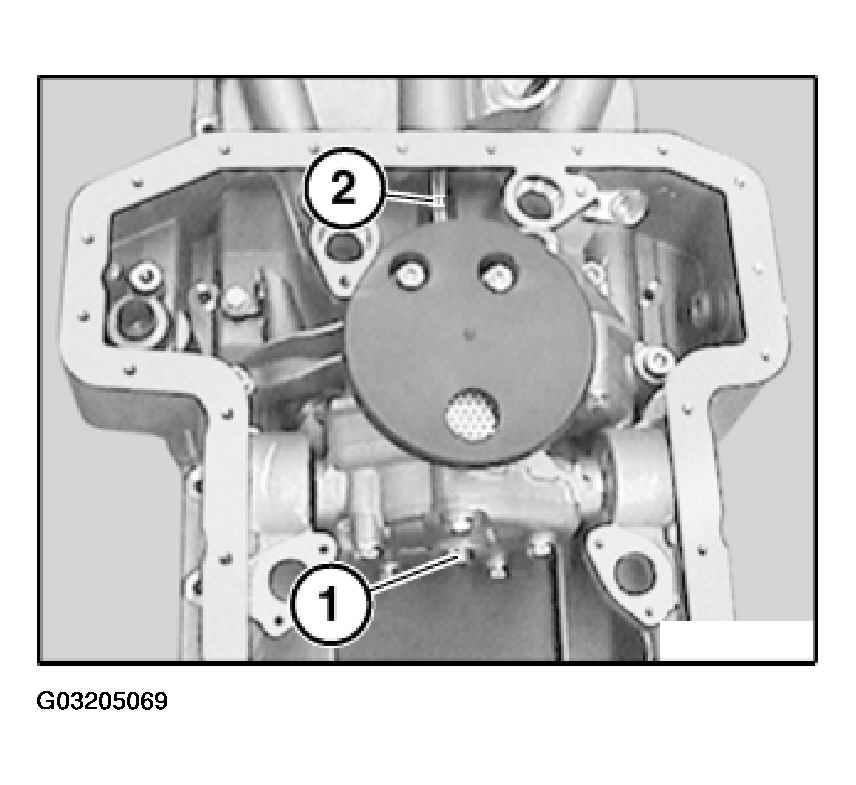

CAUTION: Condensate from the intake air manifold and oil from the VANOS adjustment unit is routed back to the oil sump through the return bore (2).

If necessary, check throughflow of return bore (2) with compressed air.

Fig 34: Checking Throughflow Of Return Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Keep sealing face clean and free of oil.

Replace gasket (1).

Fig 35: Identifying Gasket And Return Bore

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: There must be no sealing compound applied in area of return bore (2).

At contact edges between oil sump gasket and seal (1), apply a thin bead of sealing compound Drei Bond 1209 (refer to BMW Parts Service ).

Install cover (1).

Fig 36: Installing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
