11 61 056 Replacing sealing flange for left or right intake air manifold (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install intake air manifold, refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S62) .

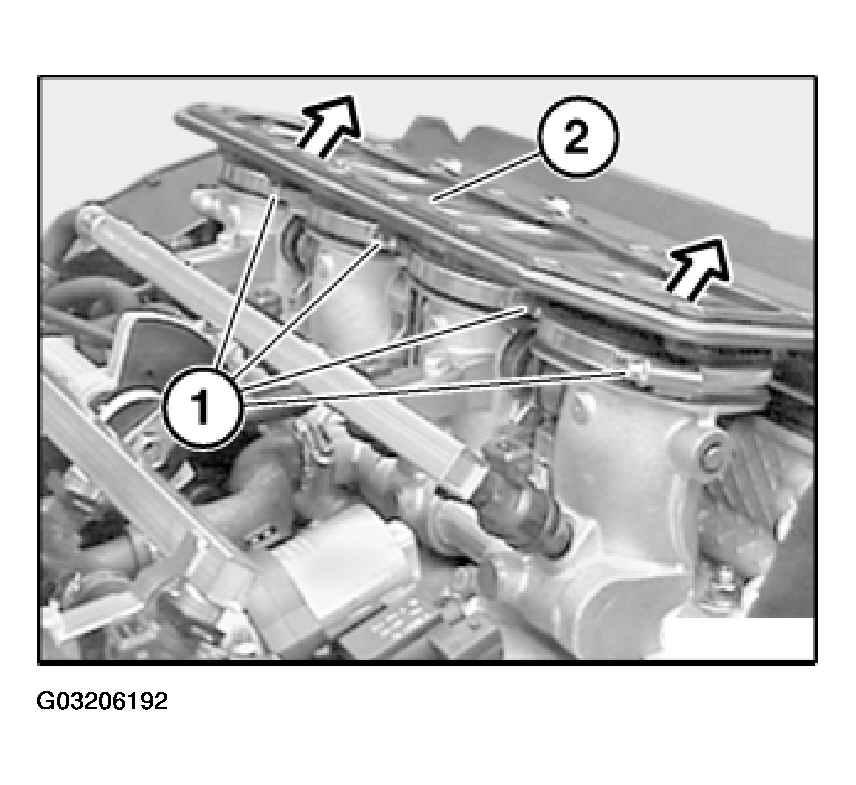

Release hose clamps (1).

Remove sealing flange (2).

Fig 1: Removing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

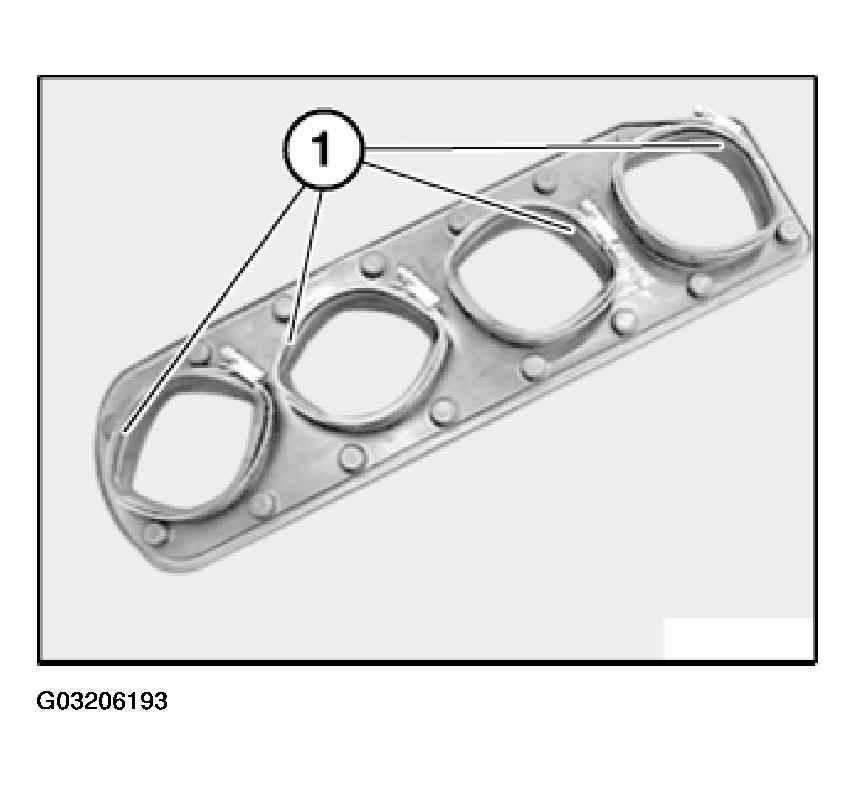

Coat sealing surfaces (1) with anti-friction rubber coating (e.g. petroleum jelly).

Fig 2: Coating Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

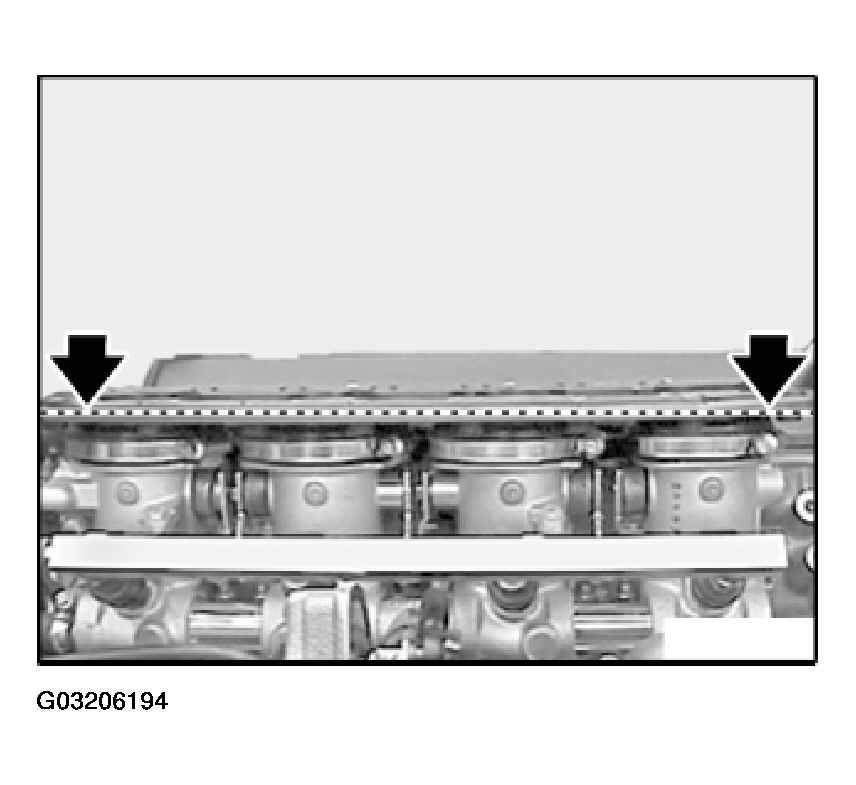

When installing, make sure sealing flange is correctly seated.

Uneven sealing flange surface indicates incorrect installation.

Fig 3: Installing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.
