11 12 729 Checking cylinder head for watertightness (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

(Cylinder head dismantled)

Seal coolant apertures with special tool kit 11 1 490.

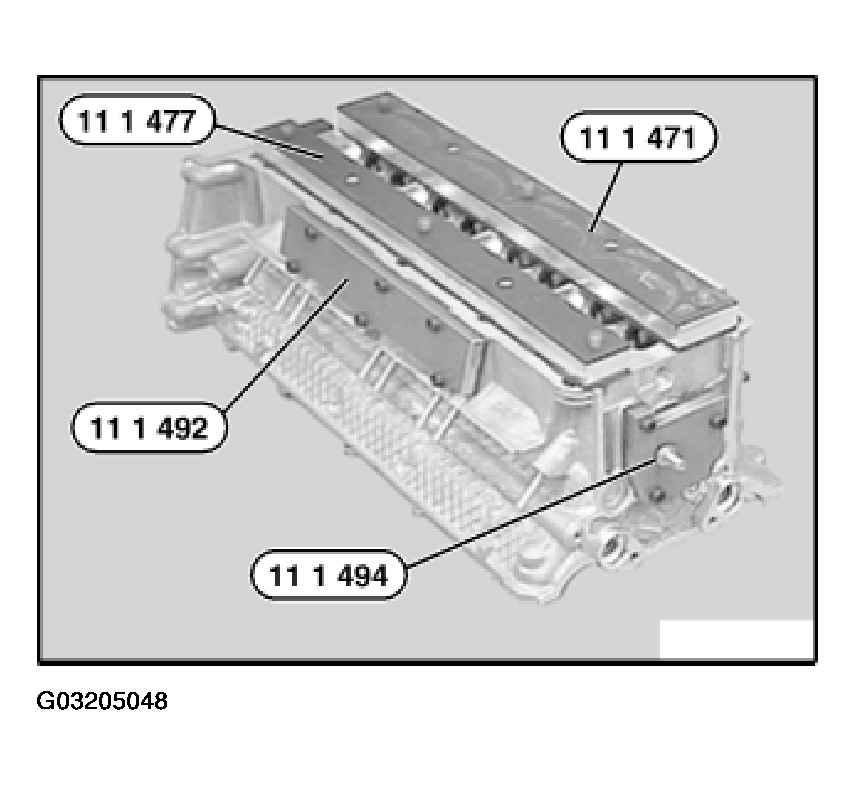

Fig 1: Sealing Coolant Apertures

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows cylinder head on cylinder bank 5 to 8.

The following special tools are required for the cylinder head on cylinder bank 1 to 4:

Special tool 11 1 471

Special tool 11 1 477

Special tool 11 1 491

Special tool 11 1 493

Immerse cylinder head in a water bath. Inspection pressure 4.5 bar.

Check cylinder head for escaping air (cracks).

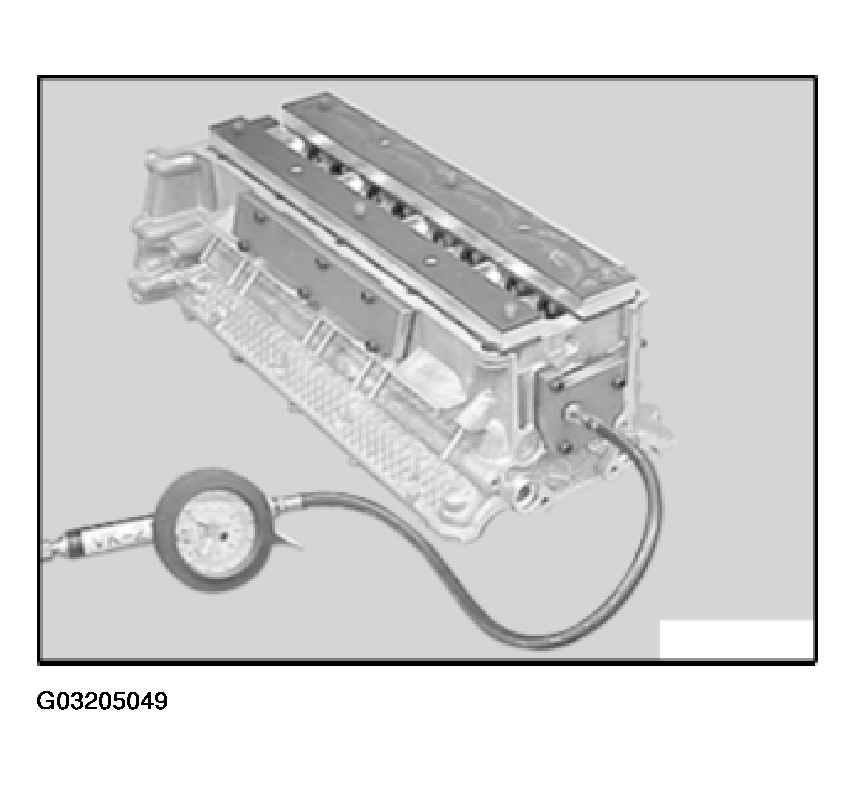

Fig 2: Checking Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If necessary, add cleaning agent to water bath.
