11 21 571 Replacing grooved ball bearing in crankshaft (M62 / S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

(Clutch removed)

Remove grooved ball bearing with special tool 11 2 340 in conjunction with special tool 11 2 016.

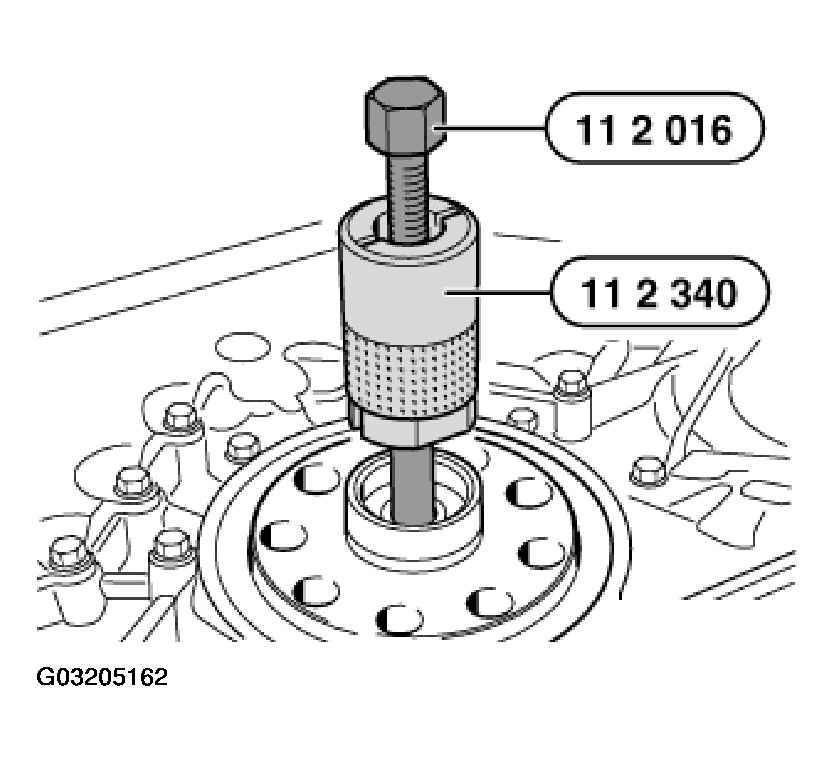

Fig 1: Removing Grooved Ball Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.

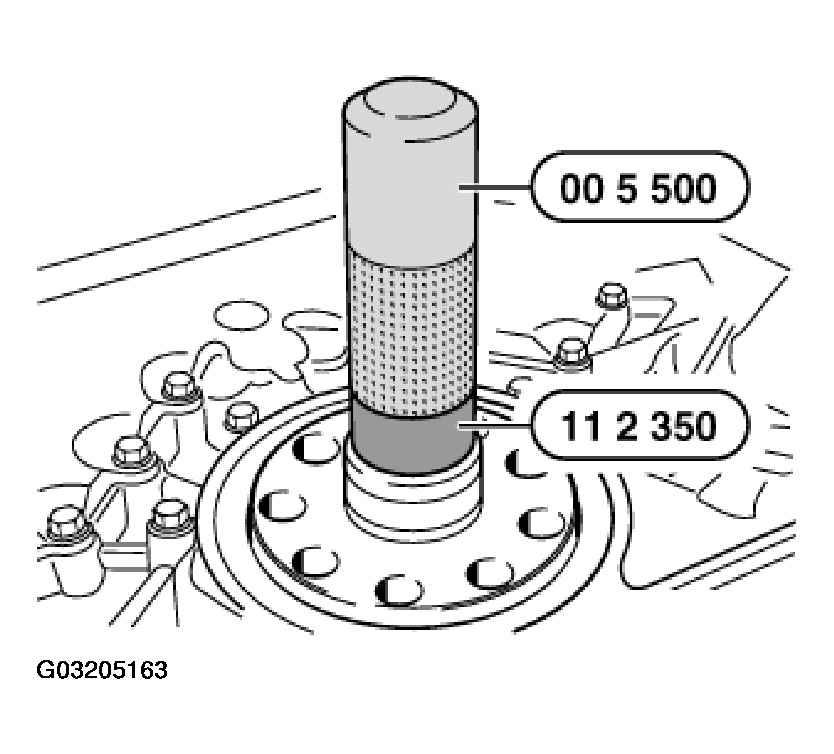

Fig 2: Installing Thrust Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
