61 61 131 Replacing both wiper blades (Bosch AeroTwin)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Make sure the wiper arm does not touch the windscreen without its wiper blade.

Necessary preliminary work:

Remove BOTH WIPER BLADES

Removal:

Pull off both sealing caps (1) using a suitable tool (2).

Fig 1: Pulling Off Sealing Caps

G09929005

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not excessively bend the retaining tab (risk of breakage).

Slightly bend retaining tab (1) upwards using a suitable tool (2) only to the point where the wiper blade is easily accessible.

Fig 2: Bending Retaining Tab Slightly

G09929006

Courtesy of BMW OF NORTH AMERICA, INC.

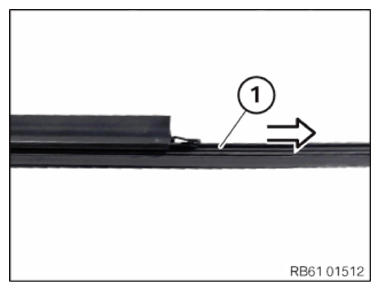

Pull out wiper blade (1) in the direction of the arrow.

Fig 3: Pulling Out Wiper Blade

G10048375

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert wiper blade (1).

Fig 4: Inserting Wiper Blade

G09929008

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining tab (2) must not be missing or damaged.

Position wiper blade (1) flush.

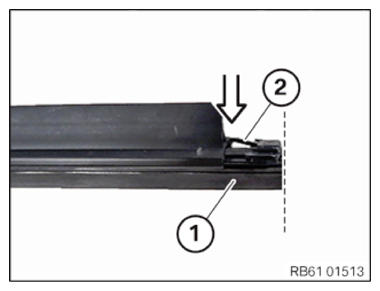

Carefully bend retaining tab (2) in the direction of the arrow using a suitable tool until the wiper blade (1) is clamped.

Fig 5: Securing Wiper Blade With Retaining Tab

G10048377

Courtesy of BMW OF NORTH AMERICA, INC.

Push on sealing caps (1) until they noticeably engage.

Fig 6: Installing Sealing Caps

G09929010

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install BOTH WIPER BLADES
