61 31 204 Replacing operating unit for seat adjustment

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Remove COVER FROM FRONT SEAT

Release screws (1).

Raise operating unit for seat adjustment (2).

Fig 1: Identifying Operating Unit With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

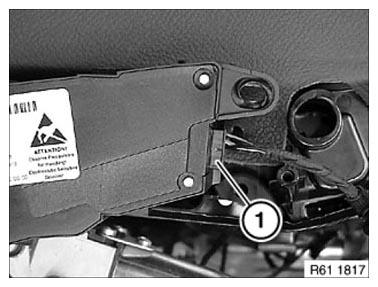

Disconnect plug connection (1) and remove operating unit for seat adjustment.

Fig 2: Identifying Operating Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
