61 31 198 Replace controller chrome ring

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

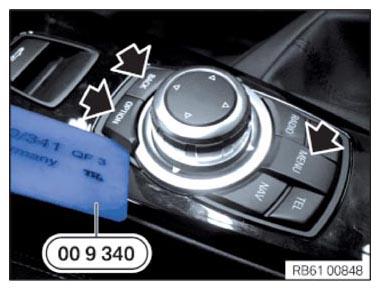

Lever out "OPTION", "BACK", "MENU" buttons with special tool 00 9 340 .

Fig 1: Removing Option, Back, And Menu Buttons Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

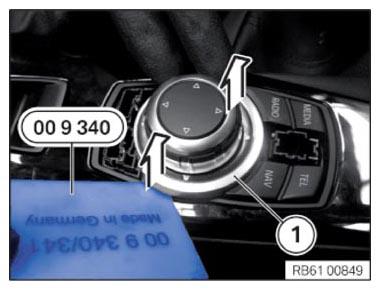

Lever out chrome ring (1) from latch mechanisms with special tool 00 9 340 and remove upwards.

Installation note:

Retaining lugs on controller must not be damaged.

Fig 2: Removing Chrome Ring From Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the controller.
