61 31 084 Removing and installing/replacing switch for automatic rear lid actuation

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

Removal:

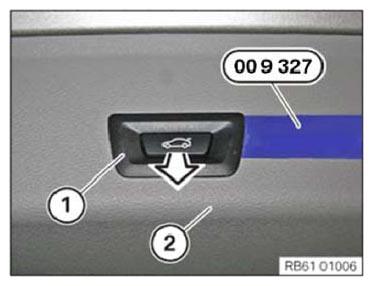

Lever switch for automatic operation of tailgate (1) out of tailgate trim panel (2) with special tool 00 9 327 .

Fig 1: Removing Tailgate Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) on switch for automatic operation of tailgate (2) and disconnect.

Fig 2: Identifying Tailgate Switch Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

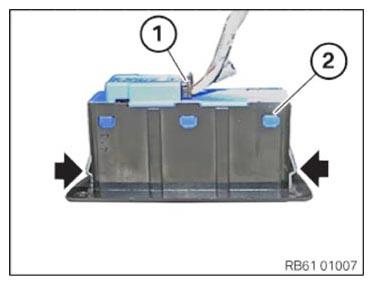

NOTE: Retaining clips on switch for automatic operation of tailgate (2) must not be missing or damaged.

Connect connector (1) to switch for automatic operation of tailgate (2).

Fig 3: Identifying Tailgate Switch Connector

Courtesy of BMW OF NORTH AMERICA, INC.

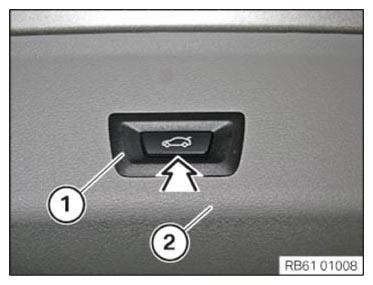

Insert switch for automatic operation of tailgate (1) into tailgate trim panel (2).

Fig 4: Installing Tailgate Switch

Courtesy of BMW OF NORTH AMERICA, INC.
