Installation in wet area (engine compartment, wheel arch)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

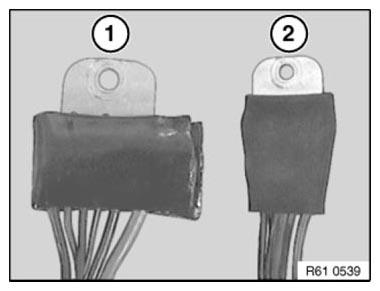

Apply sealing compound on both sides and press into contacts (1).
Fit shrink-fit hose and heat up with hot air blower (2) (approx. 250 °C).
NOTE:
Ensure that fan connector has sufficient contact surface on mounting point.
Do not heat shrink-fit hose on edges of fan connector too strongly, risk of cracking.
Allow shrink-fit hose to cool down until hand-warm. Then press sealing material again into contacts and onto edges of fan connector.
If necessary, carefully heat shrink-fit hose again.
