61 35 080 Removing and installing/replacing control unit/module for left or right seat adjustment

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Clamp off BATTERY NEGATIVE LEAD

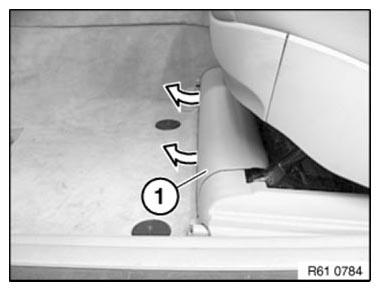

Unclip cover in upper rail at front (1) in direction of arrow and remove.

Fig 1: Removing Cover From Upper Rail

G06895113

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock latch mechanisms (1).

Feed out control unit for seat adjustment (2) in direction of arrow.

Fig 2: Removing Control Unit For Seat Adjustment

G06895114

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove control unit for seat adjustment (2).

Fig 3: Identifying Control Unit For Seat Adjustment And Plug Connection

G06895115

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

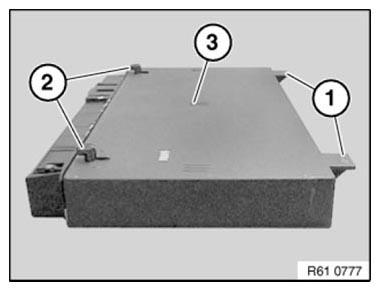

Make sure mounts (1) and retaining tabs (2) of control unit for seat adjustment (3) are correctly seated.

Fig 4: Identifying Control Unit For Seat Adjustment, Mounts And Retaining Tabs

G06895116

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle PROGRAMMING/ENCODING .
