61 13... Instructions for opening contacts and locks of different plug contact systems: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION CHART
| Abbreviations of contacts and what they mean: | |
|---|---|
| ELA | Strand seal |
| D 1.5/2.5/3.5 | Round contacts with 1.5 mm, 2.5 mm or 3.5 mm diameter |
| MDK | Miniature double flat spring contact |
| JPT | Junior Power timer |
| DFK | Double flat spring contacts |
| Elo | Electronic contacts |
| Elo Power | Electronic contacts for heavy load |
| MQS | Micro Quadlock system |
| MPQ | Micro Power Quadlock |
| MLK | Mini laminated contact |
| SLK | Sensor laminated contact |
| LSK | Load current contact |
| MLK | Mini laminated contact |
| Mcon | Multi contact |
IMPORTANT:

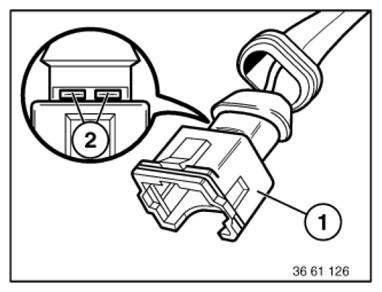

The contacts can be changed on ultrasonically welded plugs (1).
Ultrasonically welded plugs (1) must be replaced completely.
Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.
NOTE:
Special tools referred to in the repair instructions below are contained in the following special tool kits:
- Release and pressing-off tool 61 1 150 has been replaced by 61 0 300 .
- Release and pressing-off tool 61 1 100 (engine)
