0011500 Checking/topping up fluid level in automatic transmission (GA6HP26Z/GA6HP32): Installation

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2014 BMW Alpina B7L. However, it is still accessible from the selected car via links, so may be relevant.

Replace sealing ring.

Top up transmission fluid until it emerges from filling orifice.

Start engine.

Replenish transmission fluid until it emerges from filling orifice.

Screw in filler plug (1).

Tightening torque: 24 11 3AZ .

Press brake pedal to floor and shift through gears 1 to 6 several times at idle speed. Then shift to "P" position (Park).

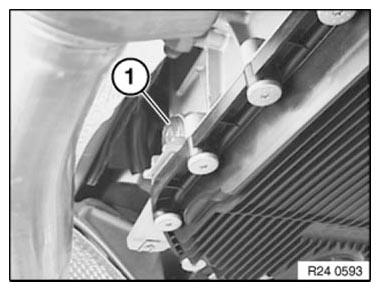

Fig 1: Identifying Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Then check fluid level.
