00 11 259 Replenishing / changing rear differential oil

Important!

Use only approved differential oils.

Failure to comply with this instruction will result in serious damage to the rear differential!

Replenishing rear differential oil:

Undo oil filler plug (1).

Check rear differential oil level.

If necessary, pour in rear differential oil up to lower edge of opening for oil filler plug (1).

Fig 1: Locating Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Oil filler plug with sealing ring:

   Replace sealing ring (1).

   Tightening torque, 65 Nm.

2. Oil filler plug with O-ring:

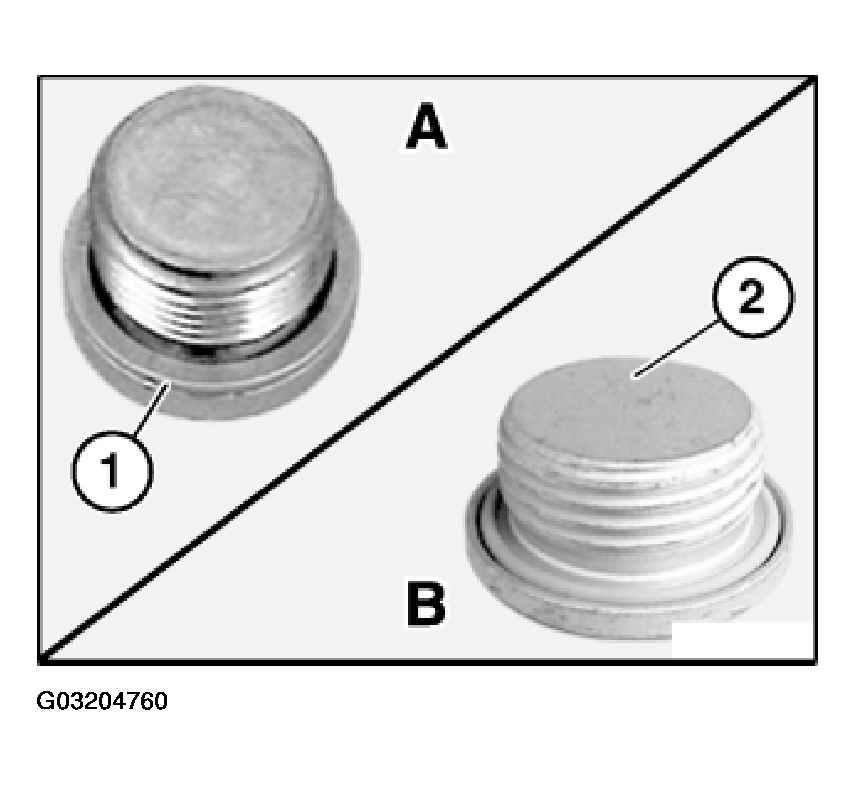

Fig 2: Identifying Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Replace oil filler plug (2).

Tightening torque 60 Nm.

Changing rear differential oil:

Only change oil when rear differential is at normal operating temperature.

Recycling:

Catch and dispose of emerging differential oil.

Observe country-specific waste-disposal regulations

Place oil collecting apparatus underneath.

Remove oil drain plug (1).

Drain and dispose of differential oil.

Undo oil filler plug (2).

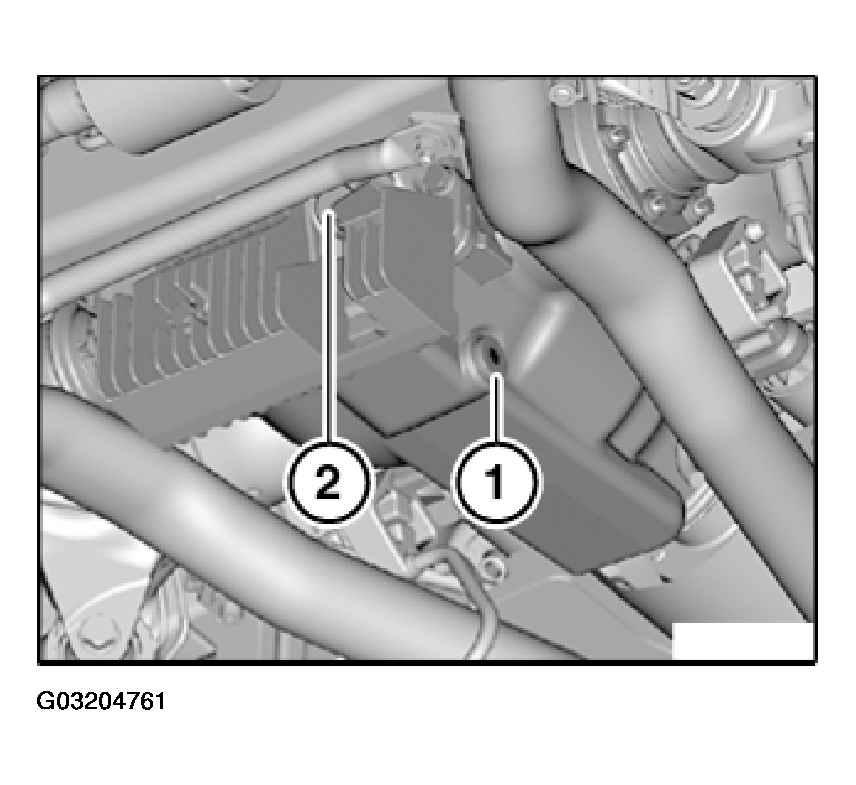

Fig 3: Locating Oil Drain Plug And Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Oil drain plug with sealing ring:

   Replace sealing ring (1).

   Tightening torque: 65 Nm.

2. Oil drain plug with O-ring:

Fig 4: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Replace oil drain plug (2).

Tightening torque: 60 Nm.

Installation:

Pour in rear differential oil up to lower edge of opening for oil filler plug (1).

Fig 5: Identifying Oil Drain Plug And Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Oil filler plug with sealing ring:

   Replace sealing ring (1).

   Tightening torque: 65 Nm.

2. Oil filler plug with O-ring:

Replace oil filler plug (2).

Tightening torque: 60 Nm.

Fig 6: Identifying Oil Filler Plugs

Courtesy of BMW OF NORTH AMERICA, INC.
