00 11 229 Oil change in manual transmission

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Gearbox must be at normal operating temperature.

Gear oil:

refer to BMW Service Operating Fluids .
Filling capacities:
Refer to TORQUE SPECIFICATIONS .
Draining gear oil:
Release oil drain plug (1) and filler plug (2).

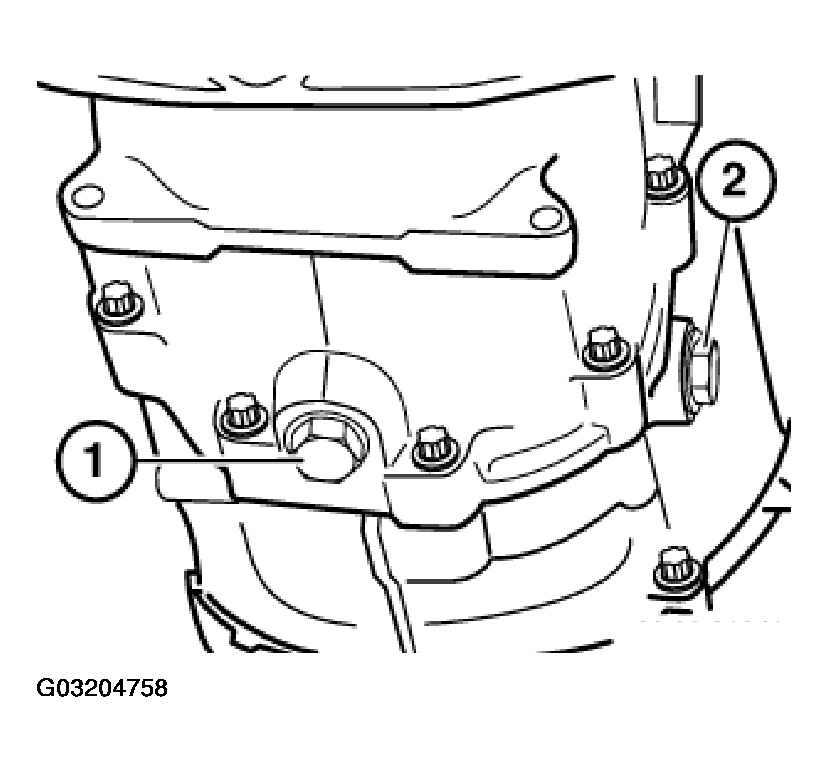

Fig 1: Releasing Oil Drain Plug And Filler Plug
Courtesy of BMW OF NORTH AMERICA, INC.
Clean oil drain plug (1) and screw in.
Tightening torque, refer to TORQUE SPECIFICATIONS .

Fill transmission with gear oil.
Pour in gear oil until overflowing.
Screw in filler plug (2).

Tightening torque: refer to TORQUE SPECIFICATIONS .
