00 00 ... Brake and clutch hydraulic system: checking fluid level, topping up if necessary

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Brake fluid is toxic.
Keep brake fluid off painted surfaces of vehicle as brake fluid will damage the finish.

Check fluid level in expansion tank; if necessary, top up brake fluid to Max. marking (1) (refer to Service Information Operating Fluids).

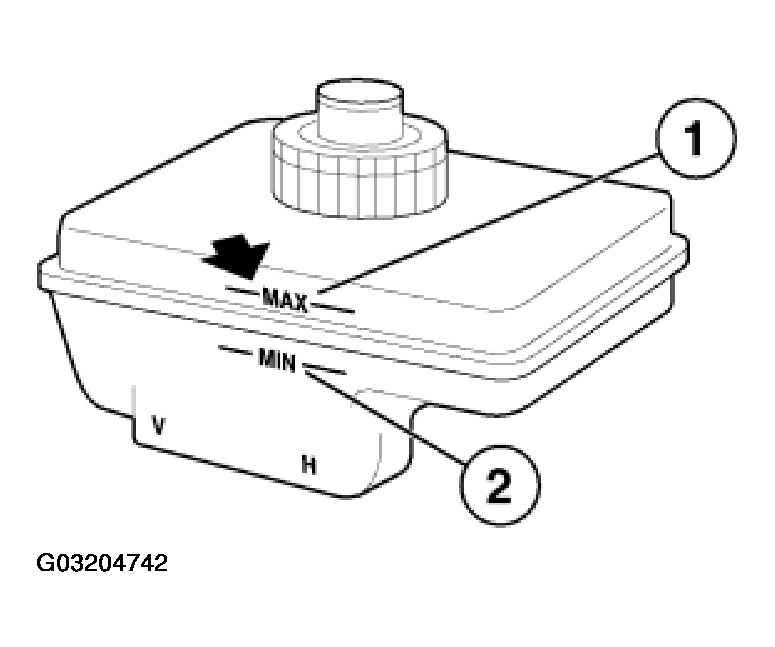

Fig 1: Identifying Brake Fluid Expansion Tank Max And Min Mark

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: If the fluid level in the expansion tank has dropped to the Min. marking (2), this means that either the brake pads are worn or the brake system is leaking. It is not enough merely to top up the brake fluid. It is absolutely essential to identify what has caused the brake fluid level to drop.
