Raising vehicle at front:

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove front spoiler/spoiler lip.

E67: Fit jacking point (purchase of part by way of Electronic Parts Catalogue).

Slide trolley jack under vehicle at front middle until the rubber contact plate is situated below the jacking point.

Raise vehicle with trolley jack.

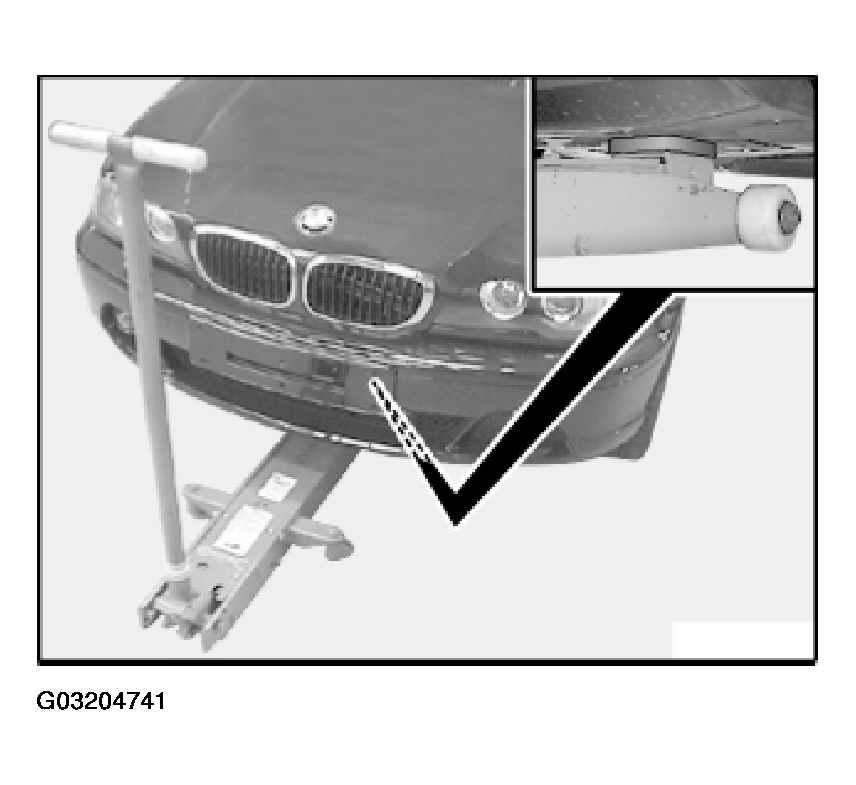

Fig 1: Raising Vehicle With Trolley Jack
G03204741Courtesy of BMW OF NORTH AMERICA, INC.
