33 41 151 Replacing left or right wheel bearing on rear axle shaft

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage multi-pole impulse ring.

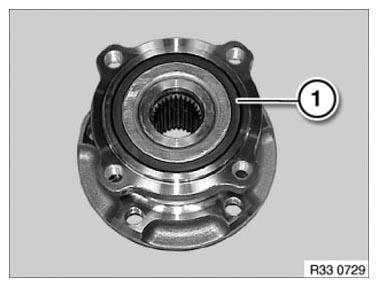

Fig 1: Identifying Impulse Ring

G06889904

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work:

Remove DRIVE FLANGE FOR REAR AXLE SHAFT .
Remove TOE ARM FROM WHEEL CARRIER .

NOTE:

Check brake pads and replace if necessary!

Release screws.

Tightening torque 33 41 2AZ .

Remove wheel bearing.

Installation note:

Replace screws.

Fig 2: Identifying Screws

G08484489

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep contact surface (1) of wheel bearing and wheel carrier clean and free from oil and grease.

Fig 3: Identifying Contact Surface Of Wheel Bearing

G08484490

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Adjust PARKING BRAKE
Activate and fill air spring system
