37 12 1090 Removing and installing rear left or right spring strut
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR WHEEL
- Remove WHEEL ARCH COVER
- Remove STOWAGE SHELF
Release screw (1).
Tightening torque 33 52 3AZ .
IMPORTANT:
Secure spring strut shock absorber against falling out.
Remove spring strut shock absorber from wheel carrier and tie up.
Installation note:
Replace screw.

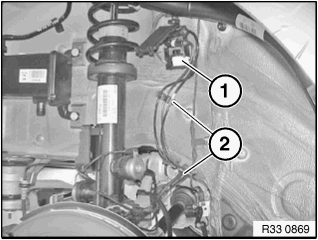

Disconnect plug connection (1) and remove from cable guide (2).
Fold back sound insulation (1) and release nuts (2).
Tightening torque 33 52 1AZ.
Installation note:
Replace self-locking nuts.
Press wheel carrier downwards, guide spring strut shock absorber downwards between guide arm and control arm and then remove in upwards direction.
IMPORTANT:
Before tightening screw connection, check that spring strut shock absorber pin is correctly positioned in wheel carrier.
