Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory of DME control unit
Turn off ignition
Remove coolant EXPANSION TANK
Remove FLUID RESERVOIR for hydraulic steering
Remove WATER VALVE for heater/air conditioner and lay coolant hoses to one side
Release suction line for hydraulic steering and place to one side, do not remove. See REPLACING SUCTION LINE FOR POWER STEERING (FROM CONNECTING PIECE TO VANE PUMP) and REPLACING SUCTION LINE FOR POWER STEERING (FROM FLUID RESERVOIR TO CONNECTING PIECE) .
Secure ENGINE in installation position

Unlock plug (1) and remove.

Release screws (2) with a reversible ratchet, extension, universal joint and a magnetic Torx socket.

Tightening torque 13 62 2AZ .

Pull pressure sensor (3) out of left plenum chamber.

Installation:

Coat sealing ring with anti-friction agent.

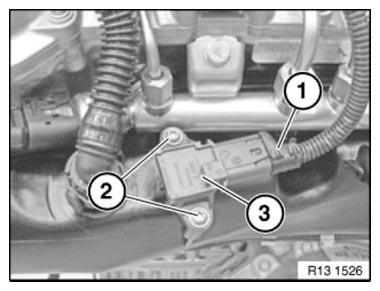

Fig 1: Identifying Pressure Sensor With Plug And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

clear fault memory.
