Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Read out fault memory of DME control unit.
Switch off ignition
Remove left intake duct.

Unlock plug (1) and remove.

Release screws (2).

Tightening torque 13 62 7AZ .

Pull pressure sensor (3) out of left intercooler.

Installation:

Replace sealing ring on pressure sensor.

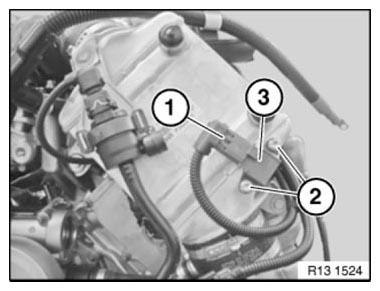

Fig 1: Identifying Pressure Sensor With Plug And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Now clear the fault memory.
