Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.
- Switch off ignition.
- Remove left INTERCOOLER .

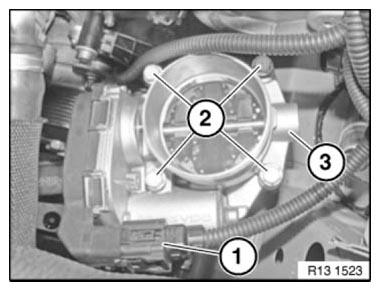

Unlock plug (1) and remove.
Unfasten screws (2).
Tightening torque 13 54 1AZ .
Remove throttle valve assembly (3).
Installation:
Check plug connection (1) for coolant remnants. If necessary, clean plug connection (1) with compressed air.
