Carrying out injector adjustment

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Connect DIS Tester
Identify car
Select "Function selection"
Select "Service functions"
Select "Engine electronics"
Select "Adjustment programs"
Select "Adjust injectors"
Change "Test schedule"
For each replaced injector, the adjustment value must be entered according to the installation position (cylinder).

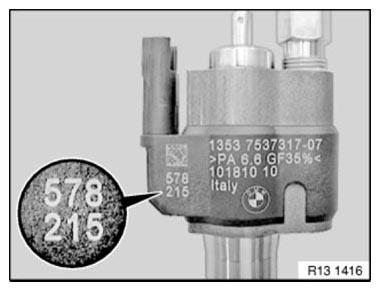

Fig 1: Identifying Adjustment Value Printed In Blocks Of Digits On Injector
Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Vent fuel system with BMW diagnosis system.

Check fuel system for leaks.

Check function of DME.
