Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Read out the fault memory of the DME control unit. If necessary, work through test schedules.
Switch off ignition.
Remove right INTERCOOLER .
Remove ELECTRONICS BOX .
Partially remove WIRING HARNESS for engine.
Partially remove WIRING HARNESS for injectors and ignition coils.
Disconnect all PRESSURE LINES on right.

Unlock plugs from high-pressure fuel sensor with a long screwdriver.

Fig 1: Unlocking High-Pressure Fuel Sensor Plugs Using Long Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (1) from high-pressure sensor.

Unfasten screws (2).

Tightening torque 13 53 1AZ .

Remove rail (3).

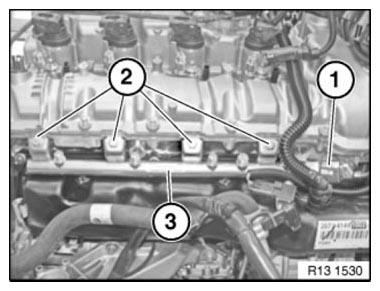

Fig 2: Identifying Fuel Rail With High-Pressure Sensor Plug And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine
Check fuel system for leak tightness.
Delete fault memory.
