1353602 Replacing left high-pressure fuel sensor (N63): Recycling

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Catch and dispose of escaping fuel in a suitable container.

Observe country-specific waste-disposal regulations.

Release high-pressure sensor (1) and remove.

Tightening torque 13 53 8AZ .

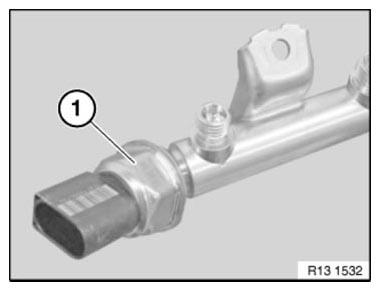

Fig 1: Identifying High Pressure Sensor
G06889073Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check fuel system for leaks.

Check function of DME.
