1353594 Replacing low-pressure fuel sensor (N63): Recycling

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

Catch and dispose of escaping fuel in a suitable container.

Observe country-specific waste-disposal regulations.

Unlock plug (1) and remove.

Release low-pressure fuel sensor (2).

Tightening torque 13 53 9AZ .

Installation:

Replace sealing ring on low-pressure fuel sensor.

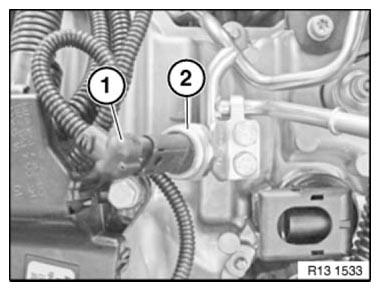

Fig 1: Identifying Low-Pressure Fuel Sensor With Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check fuel system for leaks.

Check function of DME.
