67 31 521 Removing and installing/replacing drive for seat height adjustment (front seat removed)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect connector (2).

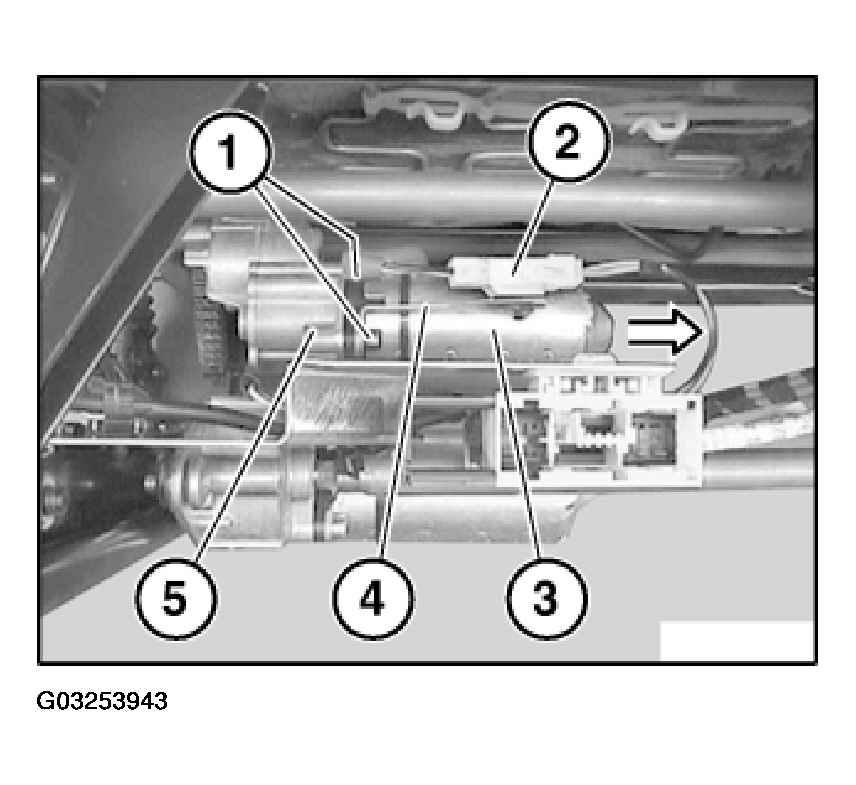

Fig 1: Removing Drive For Seat Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive for seat height adjustment (3) against falling out.

Loosen screws (1).

Remove drive for seat height adjustment (3) with fixture for plug connection (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for seat height adjustment (3).

Installation:

Make sure drive shaft (1) is correctly seated.

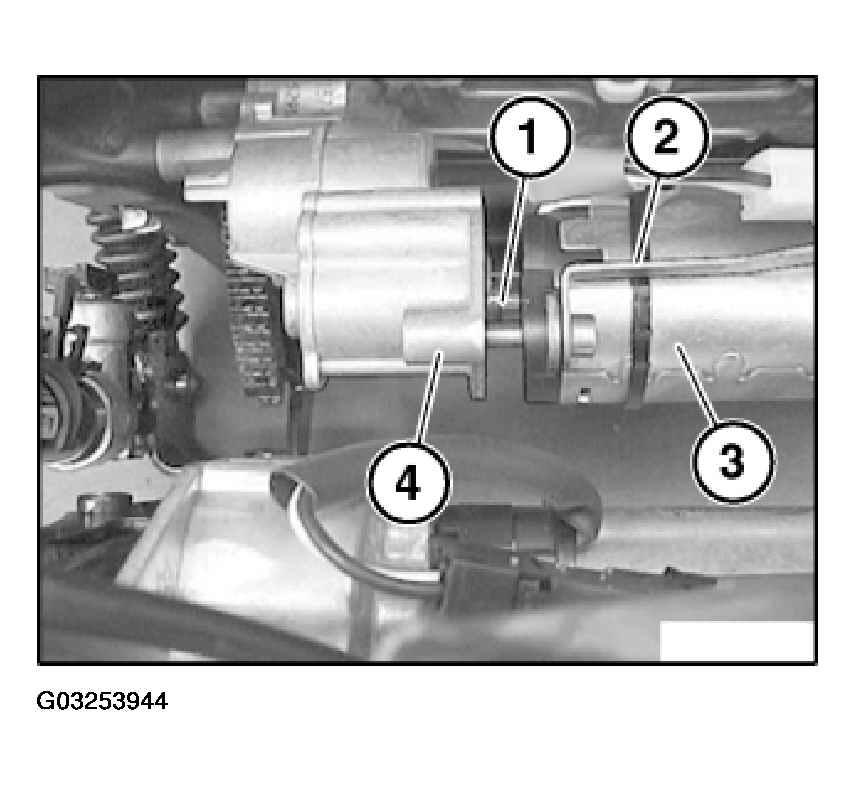

Fig 2: Identifying Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure fixture for plug connection (2) and drive for seat height adjustment (3) on flange (4) are correctly seated.
