67 31 501 Removing and installing/replacing drive for longitudinal seat adjustment (front seat removed)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

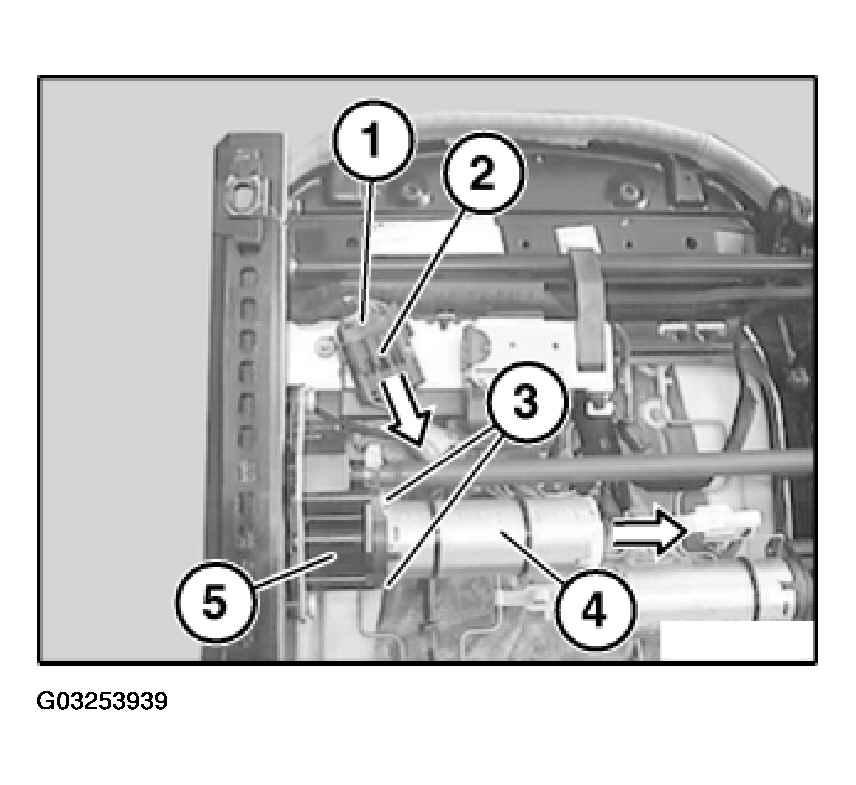

Fig 1: Removing Drive For Longitudinal Seat Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug housing (2) in direction of arrow from retaining fixture underneath.

NOTE: Secure drive for longitudinal seat adjustment (4) against falling out.

Release screws (3) and remove drive for longitudinal seat adjustment (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for longitudinal seat adjustment (4).

Installation:

Make sure drive shaft (1) is correctly seated.

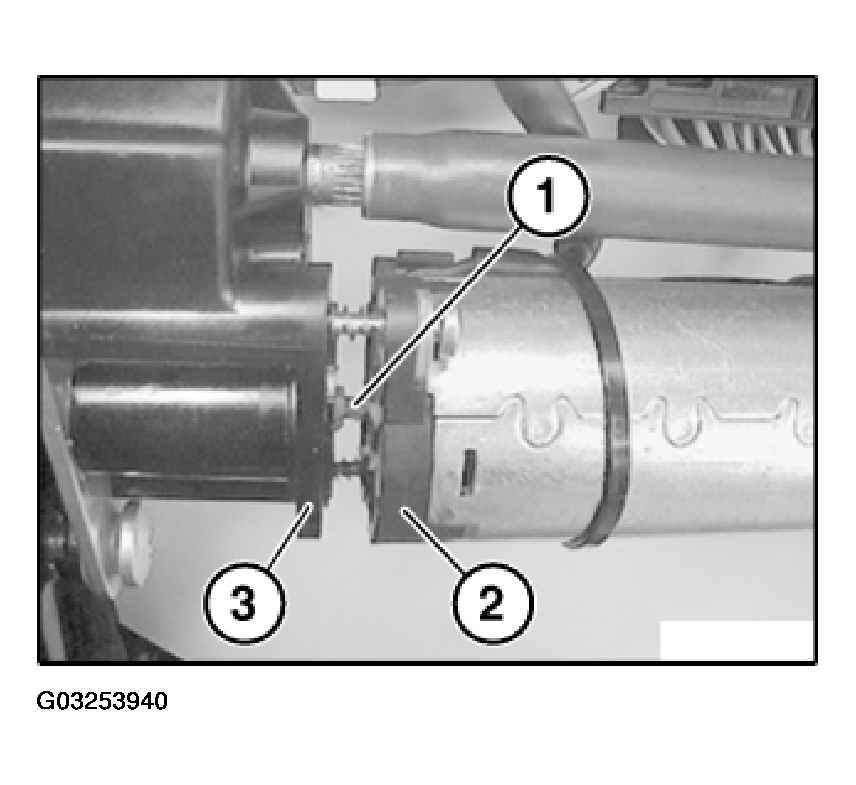

Fig 2: Identifying Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure drive for longitudinal seat adjustment (2) is correctly seated on flange (3).
