65 50 010 Removing and installing/replacing video module for on-board monitor

Special tools required:

• 00 9 317

Necessary preliminary tasks:

• Remove luggage compartment floor trim, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL
• Remove spare wheel
• If necessary, release air supply unit and place to one side

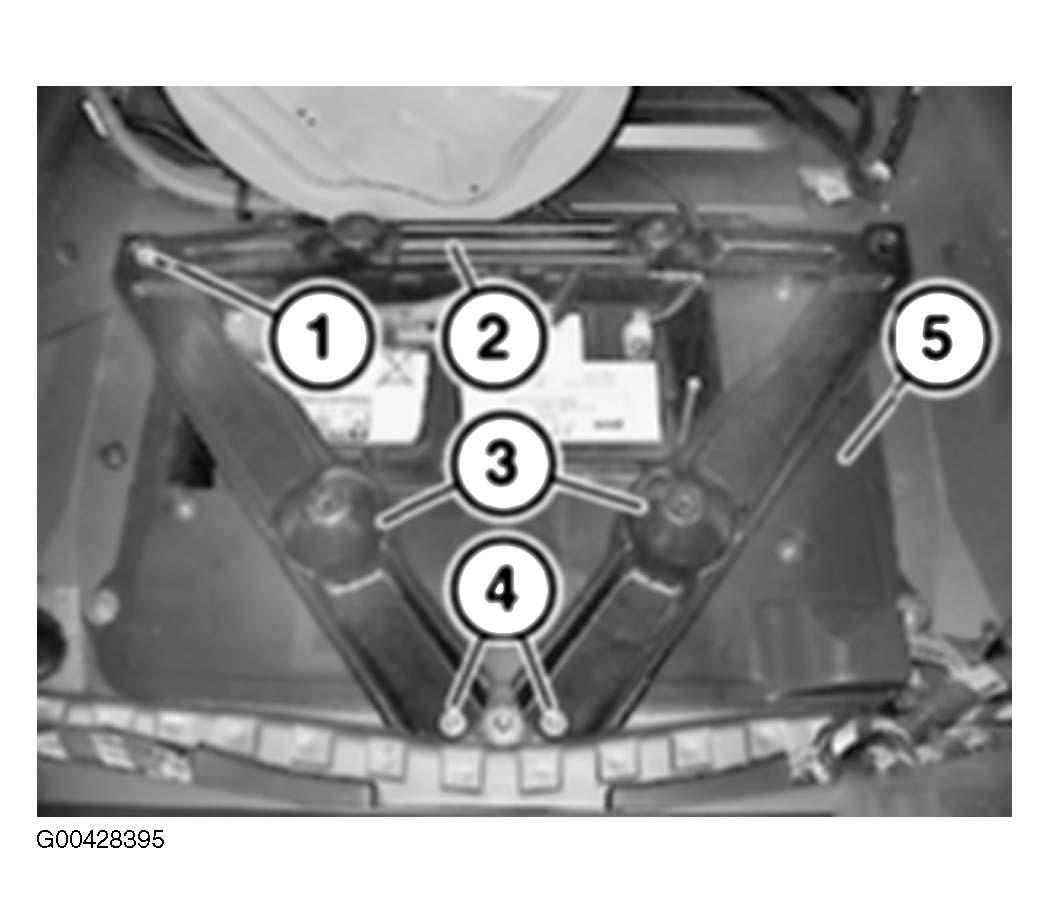

Release screw (1) and nuts (4). Remove rail (2) and both pull straps.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover for multifunction tray (5).

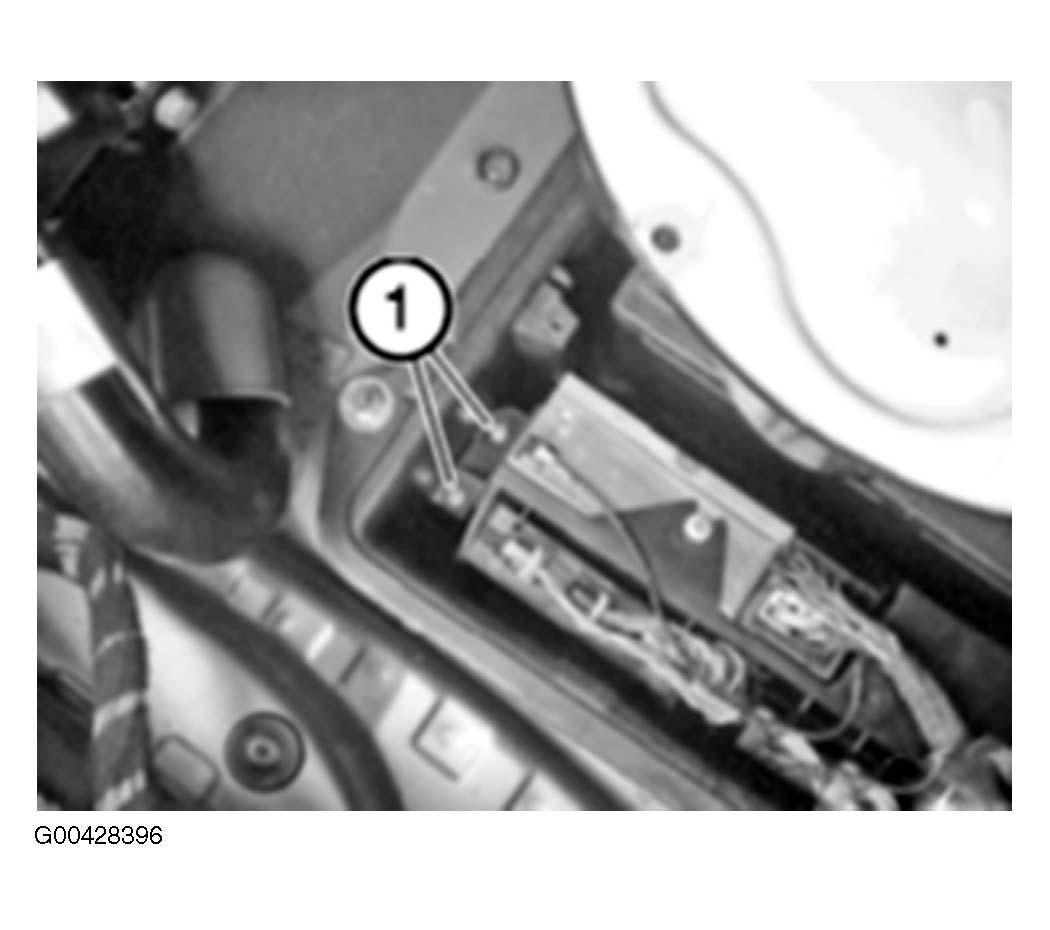

Release screws (1).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

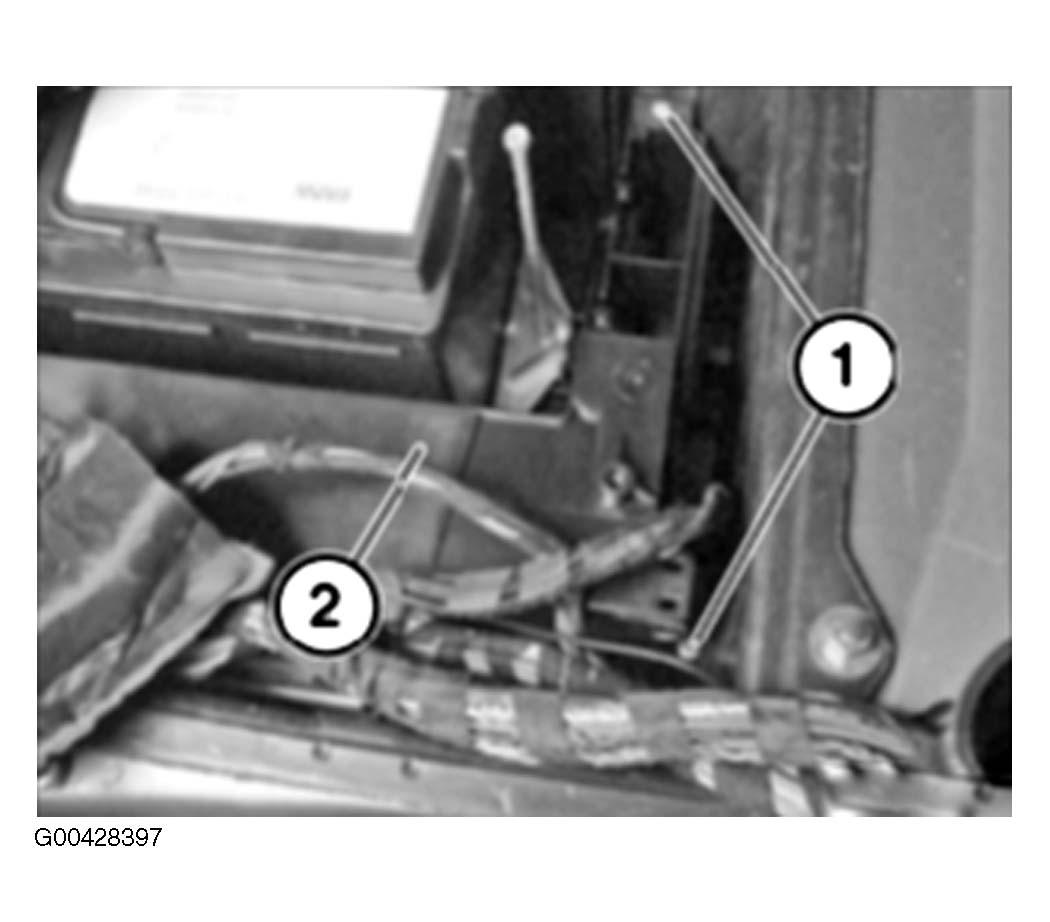

Release screws (1) and raise control unit holder (2).

Fig 3: Raising Control Unit Holder

Courtesy of BMW OF NORTH AMERICA, INC.

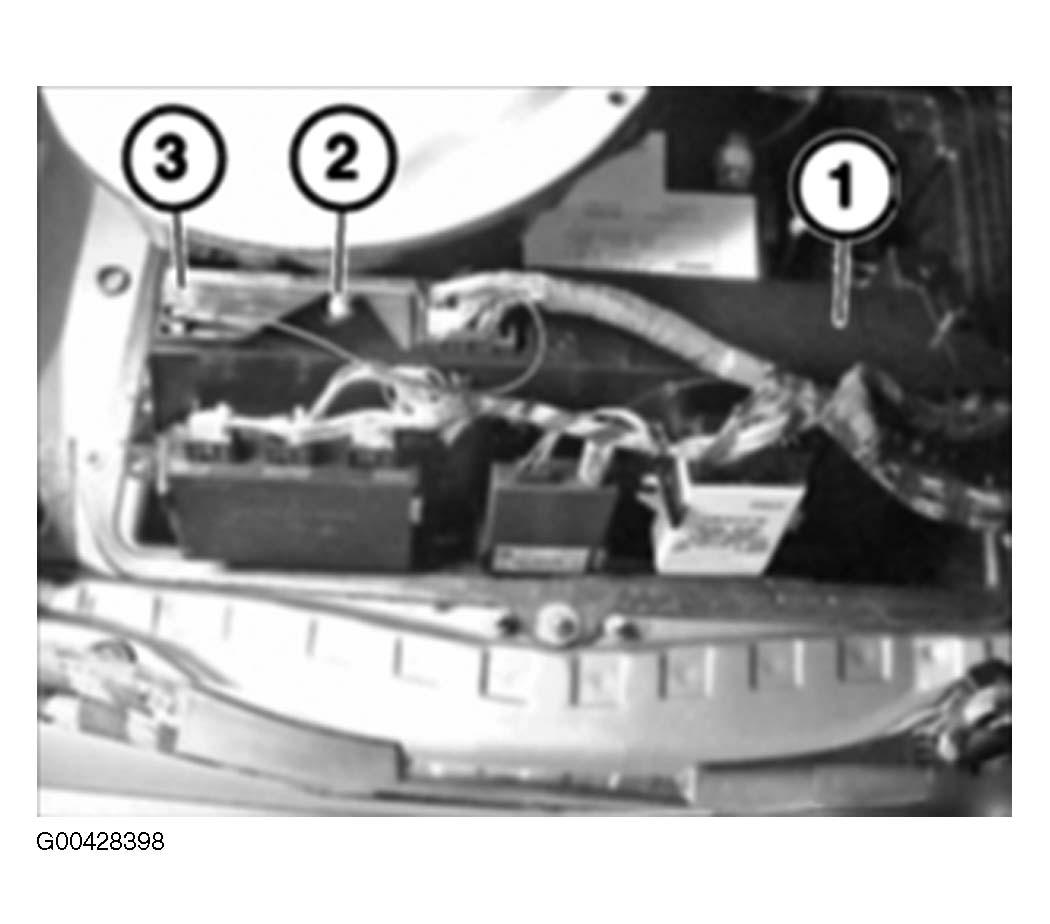

Remove control unit holder (1) and disconnect all associated plug connections. Slacken nut (2) and remove radio module (3).

Fig 4: Removing Radio Module

Courtesy of BMW OF NORTH AMERICA, INC.

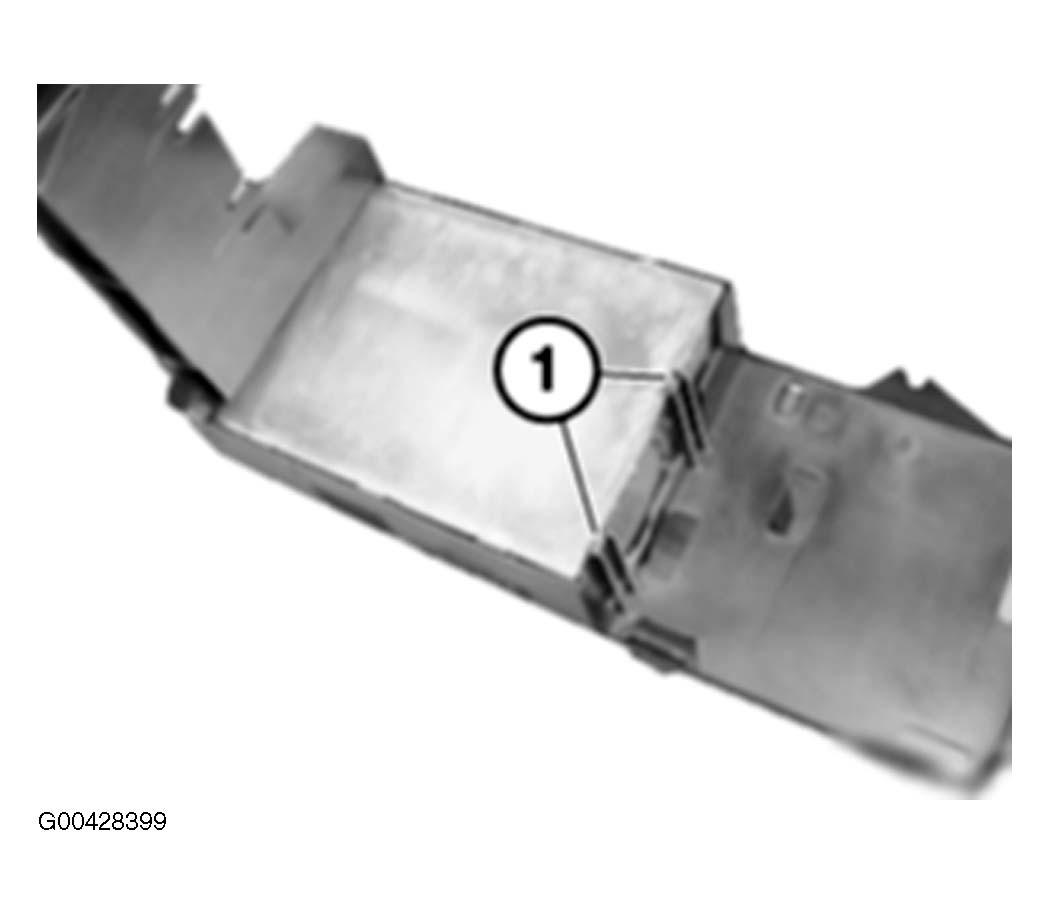

Press back retaining tabs (1).

Fig 5: Locating Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

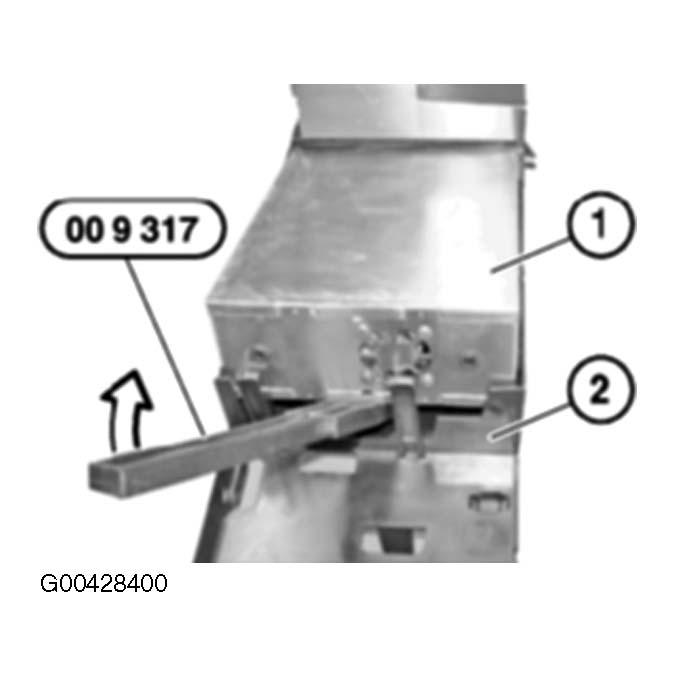

Insert special tool 00 9 317 between video module (1) and holder (2) and lever out in upward direction.

Fig 6: Removing Video Module

Courtesy of BMW OF NORTH AMERICA, INC.
