65 12 010 Removing and installing/replacing speaker (rear left or right door)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear left or right door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Unfasten plug connection (1).

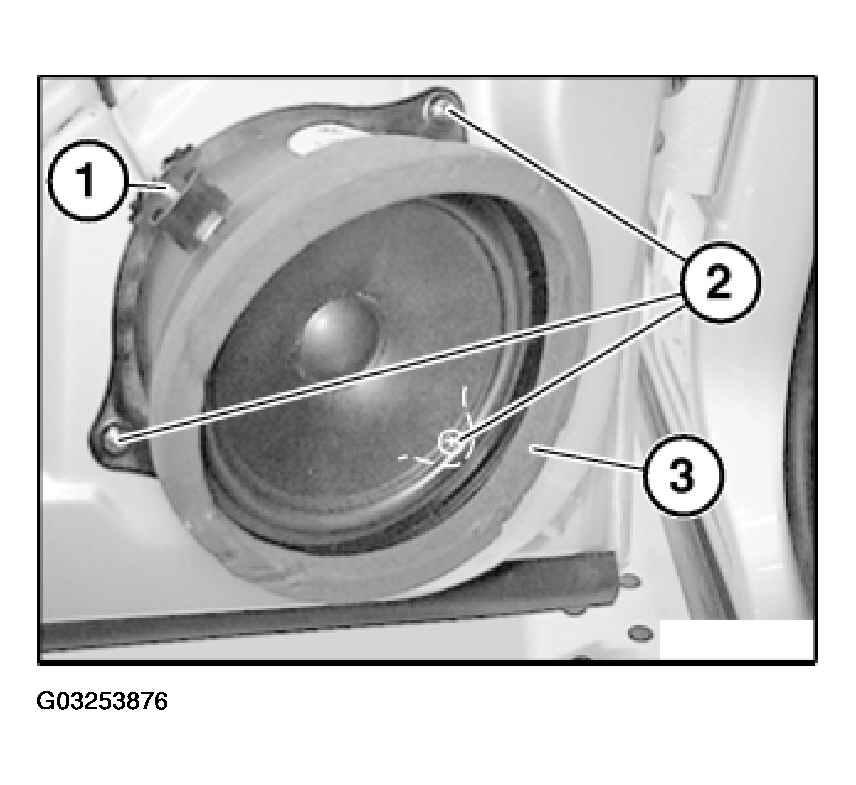

Fig 1: Removing Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove speaker (3).
