32 13 650 Removing and installing/replacing EH converter for Servotronic

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Necessary preliminary tasks:

Remove REAR UNDERBODY PROTECTION
Release BOTTOM OF STEERING SHAFT AT STEERING BOX

Disconnect plug connection (1).

Unfasten screws (2).

Remove EH converter.

Installation note:

Clean side return orifice with compressed air.

Align EH converter to opening in hydraulic steering gear, press by hand into hydraulic steering gear up to stop, insert screws (2) and tighten down.

Tightening torque 32 00 2AZ .

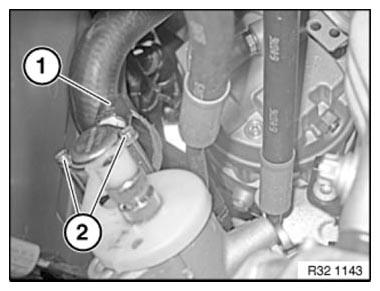

Fig 1: Identifying EH Converter Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Fill and bleed hydraulic system. See BLEEDING POWER STEERING UNIT or BLEEDING POWER STEERING (VEHICLES WITH DYNAMIC DRIVE) .
