32 13 075 Removing and installing electrical steering box (vehicles with active steering)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Connecting line:

In the event of moisture/corrosion inside the two plug connections, check the insulation of the connecting line. If the insulation reveals any noticeable/striking features, partial replacement will be necessary. Otherwise it will be sufficient to replace the contacts or connector housing.

NOTE: In a warranty case you must always provide a fault memory printout, even where there is no fault entry, with the defective part.

Necessary preliminary work:

Disconnect BATTERY EARTH LEAD
NOTE: High-current-carrying wiring laid with permanent positive connection (80 A fuse).
Remove underbody protection at FRONT and REAR
Remove COVER FOR STEERING ASSEMBLIES on left and right
Remove TRACK ROD END on both sides from swivel bearing
Remove LOWER SECTION of steering shaft from steering box
Vehicles with Dynamic Drive:
- Remove ANTI-ROLL BAR LINK ON RIGHT OF ANTI-ROLL BAR

IMPORTANT:

To avoid the need for axle/wheel alignment, mark position of steering box (1) to front axle support (2).

To do so, draw a wide white stripe on the front bolting points (left and right) and apply a thin black marking (3) to this stripe.

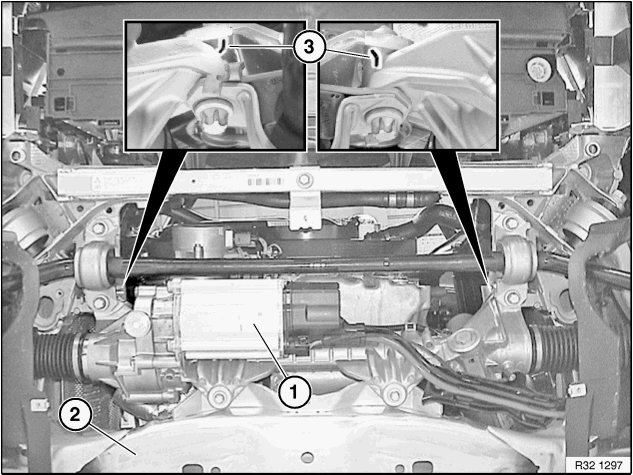

Fig 1: Marking Position Of Steering Box To Front Axle Support

G00524244

Courtesy of BMW OF NORTH AMERICA, INC.

For greater clarity steering box shown removed.

Unlock plug connections (1) and disconnect.

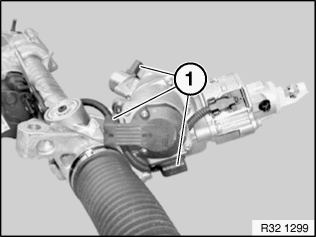

Fig 2: Identifying Connectors

G00524252

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

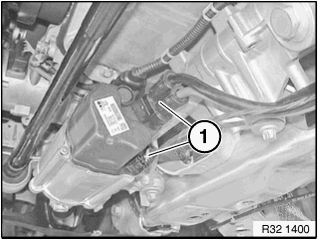

Fig 3: Identifying Connectors

G00524245

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Lay holder (2) with wiring to one side.

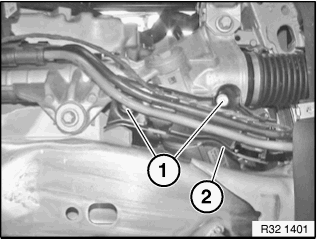

Fig 4: Identifying Holder And Screws

G00524246

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and tie anti-roll bar (2) to front axle support.

Tightening torque 31 35 1AZ .

Fig 5: Identifying Anti-Roll Bar Link With Screws

G06889610

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 32 00 1AZ

Installation note:

When installing, make sure that the steering box is realigned to the marking applied to the front axle support prior to removal.

Replace screws.

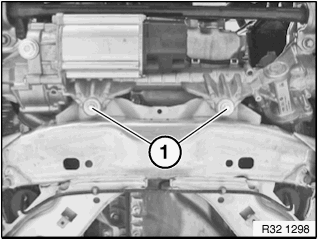

Fig 6: Identifying Steering Box Screws

G00524247

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Risk of damage!

Plug connection (1) on electrical steering box must not be damaged when removing.

Remove steering box with wiring harness downward.

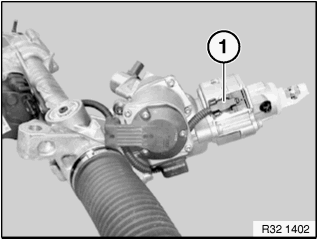

Fig 7: Identifying Connector

G00524253

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Teach in END STOP SOFTWARE
Perform ALIGNMENT/START-UP for active steering
