0492743 611410 Gauge tip MP

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Note: (Set of diagnosis and information system gauge tips)

Consisting of:

1 = 0492744 Terminal

NOTE: (Crocodile clip SAGK4-K, red)

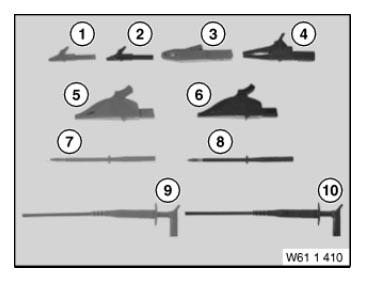

Fig 1: Identifying Gauge Tip (611410)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0492745 Terminal

NOTE: (Crocodile clip SAGK4-K, black)

3 = 0492746 Terminal

NOTE: (Crocodile clip SAGK4, red)

4 = 0492747 Terminal

NOTE: (Crocodile clip SAGK4, black)

5 = 0492748 Terminal

NOTE: (Crocodile clip XDK-1033, red)

6 = 0492749 Terminal

NOTE: (Crocodile clip XDK-1033, black)

7 = 0492750 Test probe

NOTE: (Test probe SPP4-S, red)

8 = 0492751 Test probe

NOTE: (Test probe SPP4-S, black)

9 = 0492752 Tester

NOTE: (Clamping test probe XB/100, red)

1 = 0492754 Tester

NOTE: (Clamping test probe XB/100, black)

2 = 0492755 Electronics box

NOTE: (6-fold potential distributor, black)
