SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

02 02 05 (194)

Consisting of:

2 = 0495324 Pliers

NOTE: (crimping pliers) Basic tool for different dies (crimp insert set)

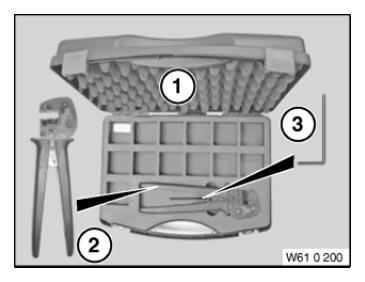

Fig 1: Identifying Crimping Tool (610200)
G06876382Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0495321 Case

NOTE: (plastic case) As storage system for complete set.

3 = 0495360 Hexagon socket

NOTE: (hexagon wrench) For securing individual dies in crimping pliers
