64 22 190 Removing and installing/replacing fresh-air grille in rear of car

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Lever out storage box (1) with special tool 00 9 340 and remove.

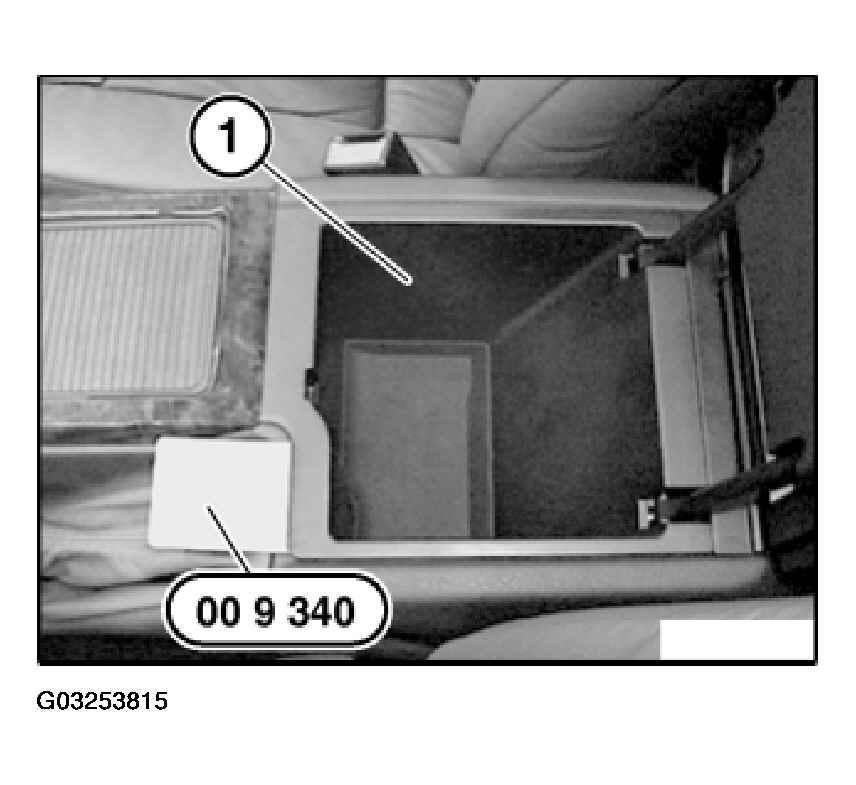

Fig 1: Removing Storage Box

G03253815

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

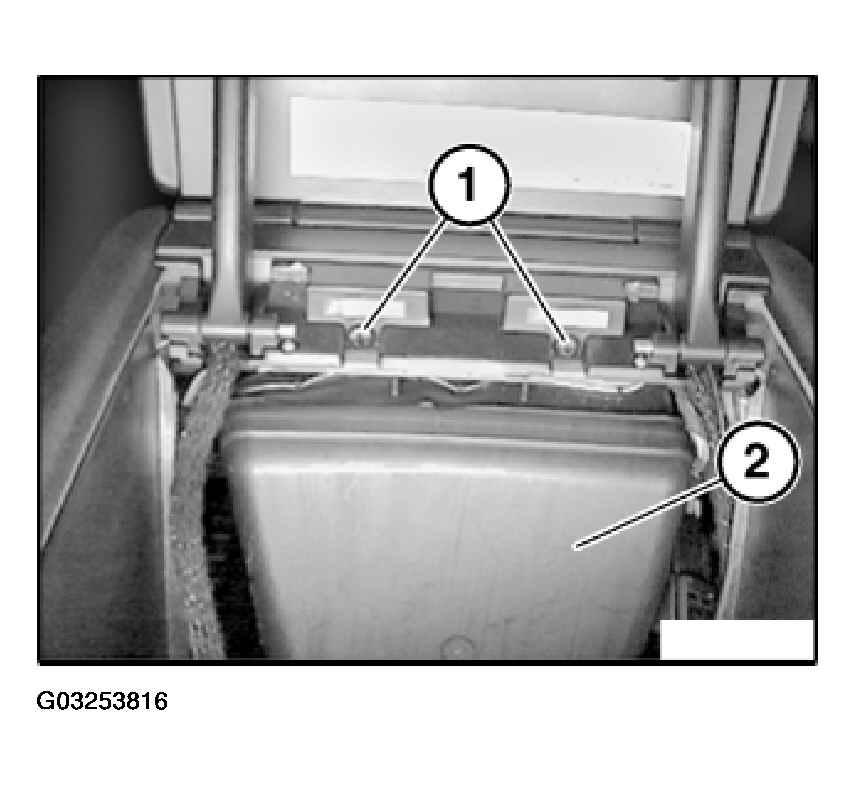

Fig 2: Locating Screws

G03253816

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure that air duct (2) is correctly seated.

Pull out fresh-air grill (1) in direction of arrow.

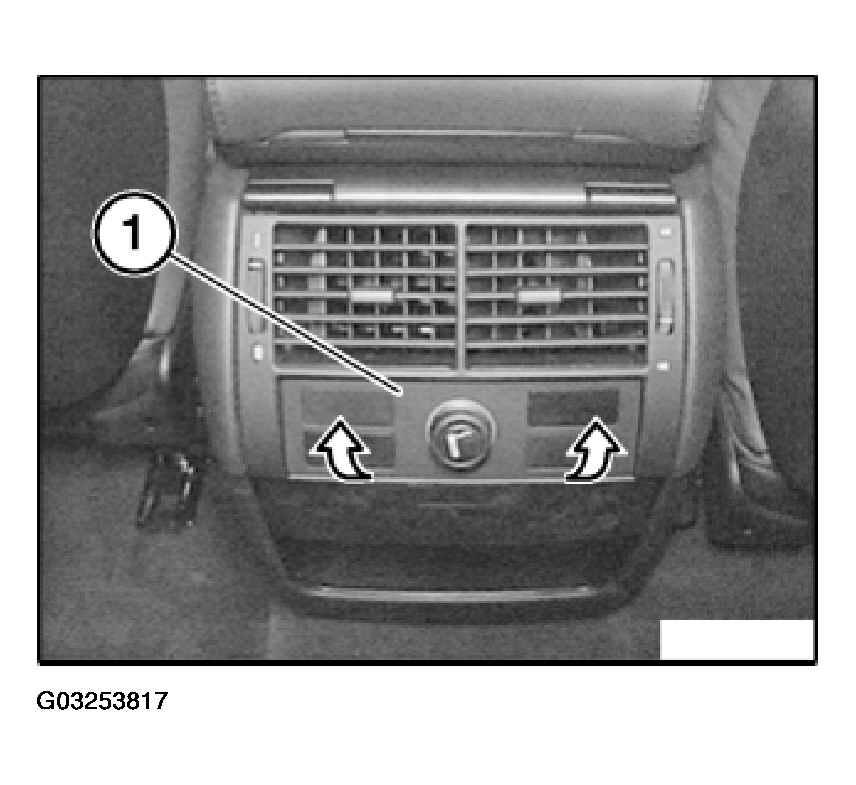

Fig 3: Pulling Out Fresh-Air Grill

G03253817

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Snap journals (1) into place in openings (2).

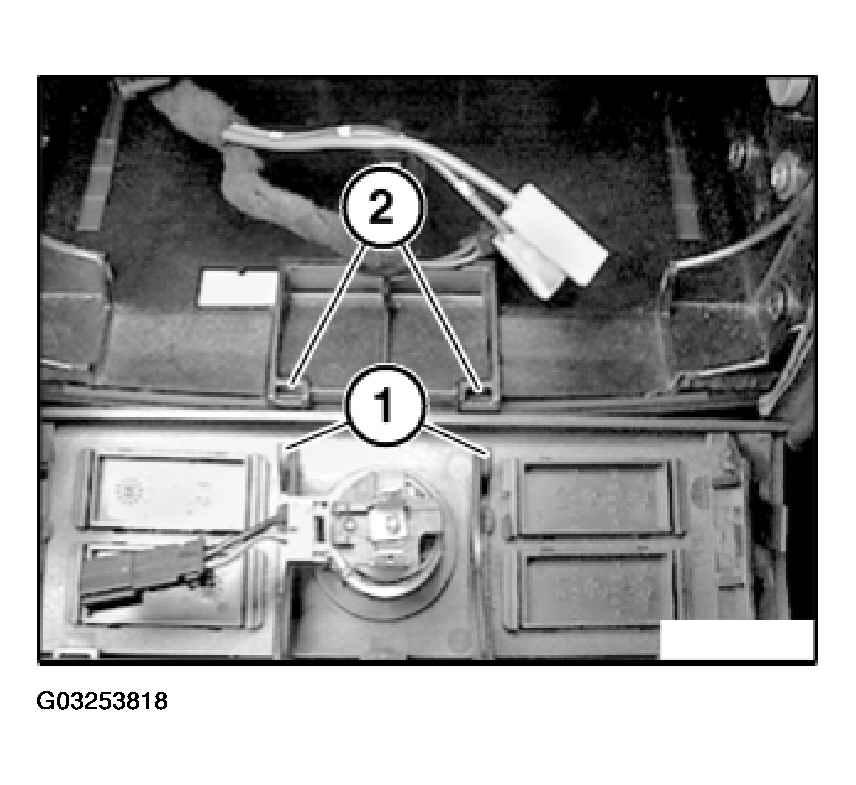

Fig 4: Installing Journals

G03253818

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

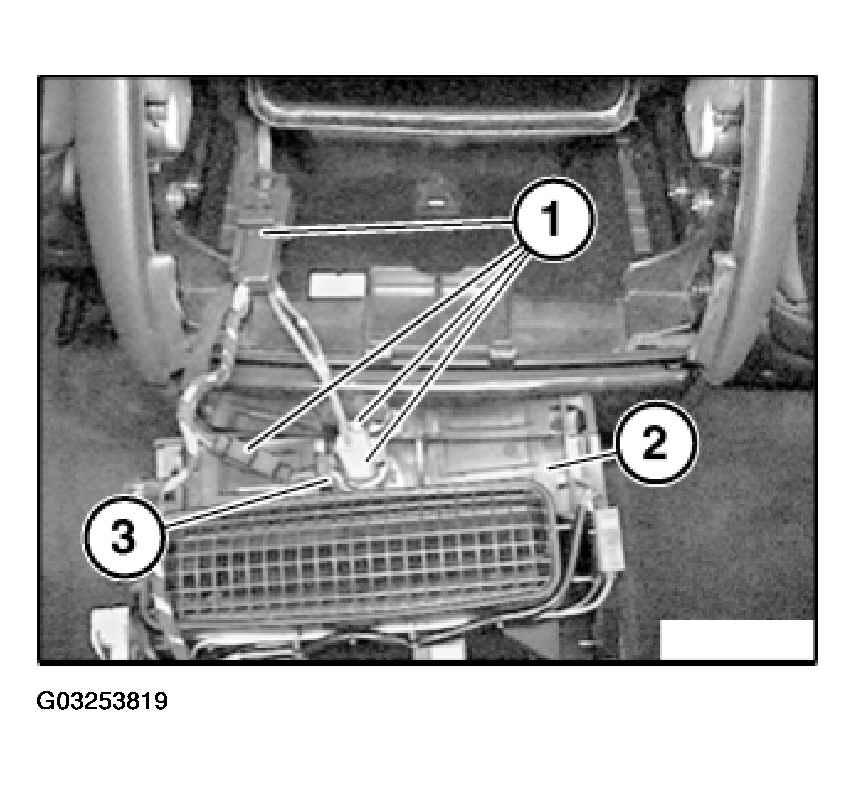

Fig 5: Removing Fresh Air Grill

G03253819

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connections on switch for seat heating.

Remove fresh air grill (2).

Replacement:

Unclip cigarette lighter (3).

If necessary, unclip switch for seat heating.
