SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 22 06 (307)

Consisting of:

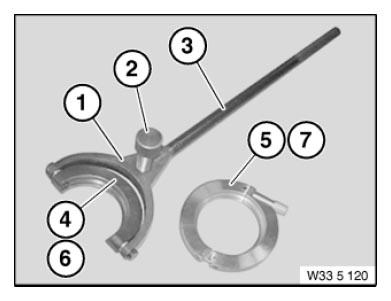

Fig 1: Identifying Device (335120)

Courtesy of BMW OF NORTH AMERICA, INC.

5 = 0495857 Shaped element

1 = 0495853 Basic body

2 = 0495854 Bolt

NOTE: (Knurled screw with synchronizing key)

3 = 0495855 Rod

4 = 0495856 Shaped element

NOTE: (Shaped element) Shaped element (bearing shell)

7 = 0496795 Shaped part

NOTE: For driving output shaft into rear axle final drive.

6 = 0496765 Shaped part

NOTE: For pressing output shaft out of rear axle final drive.

In conjunction with: 33 5 120
