SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 05 99 (426)

Consisting of:

1 = 0493816 Basic body

2 = 0493817 Spindle

3 = 0493818 Key

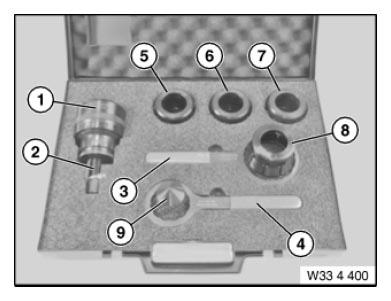

Fig 1: Identifying Device (334400)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (wrench)

4 = 0493819 Key

NOTE: (wrench)

5 = 0493820 Pliers

NOTE: (clamping ring (45...51 mm))

6 = 0493821 Pliers

NOTE: (clamping ring (50...55 mm))

7 = 0494617 Pliers

NOTE: (clamping ring (55...61 mm)) Model series: E67

8 = 0496538 Ring

NOTE: (clamping ring) Model series: F01, F02 See SI: 01 18 08 (482)

9 = 0496539 Synchronizing key

NOTE: Series: F01, F02 See SI: 01 18 08 (482)
