SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 16 08 (476)

Consisting of:

1 = 0496535 Spindle

NOTE: (spindle TR20 (length 300 mm))

3 = 0496551 Nut

NOTE: (nut TR20)

2 = 0496536 Nut

NOTE: (nut TR20 with thrust bearing)

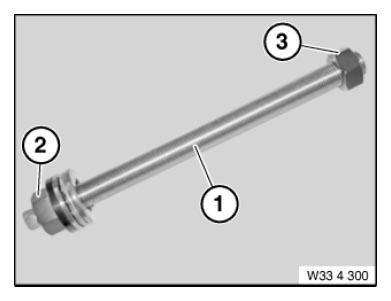

Fig 1: Identifying Spindle (334300)
G06876316Courtesy of BMW OF NORTH AMERICA, INC.
