SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 06 94 (801)

Consisting of:

1 = 0492432 Tube

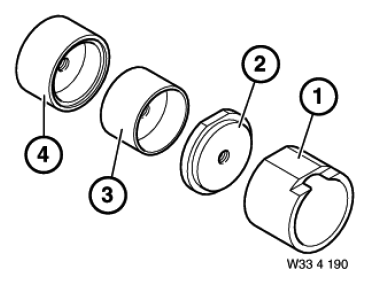

Fig 1: Identifying Tool Set (334190)
G06876320Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: (support tube) For removing and fitting

2 = 0492433 Plate

NOTE: (support plate) For removing and fitting

3 = 0492434 Synchronizing key

NOTE: For removing

4 = 0492435 Synchronizing key

NOTE: For installing
