SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 02 99 (417)

Consisting of:

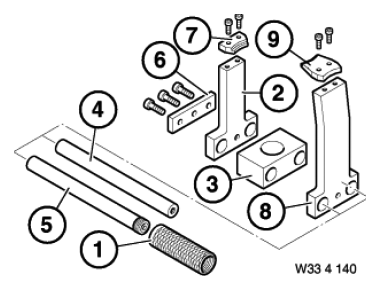

Fig 1: Identifying Device (334140)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0492398 Tube

NOTE: (threaded pipe)

2 = 0492399 Shaped part

NOTE: (shaped part) 2 pieces Model series: E38, E39, E46

3 = 0492400 Shaped part

NOTE: (Shaped part) Replaced by 31 2 313 (0 495 802)

4 = 0492401 Rod

NOTE: (Guide rod)

5 = 0492402 Rod

NOTE: (guide rod) With thread dog point

6 = 0492403 Plate

NOTE: (locating plate) With screws

= 0492404

7 = 0492404 Synchronizing key

NOTE: (synchronizing key (2 pieces)) With screws - model series: E38, E39, E46

8 = 0492405 Shaped part

NOTE: (shaped part) 2 pieces Model series: E39/2, E65, E67, RR1

9 = 0492406 Synchronizing key

NOTE: (synchronizing key (2 pieces)) With countersunk screw - model series: E39/2, E65, E67, E87
