SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 10 90 (288)

Consisting of:

1 = 0492323 Sleeve

NOTE: (Spacer sleeve) For pulling out/series: E36, E46

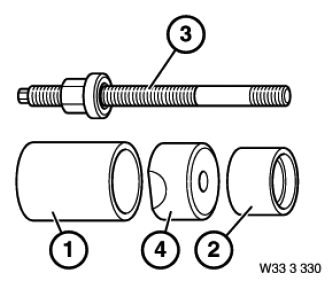

Fig 1: Identifying Device (333330)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0492324 Sleeve

NOTE: (Extraction sleeve) Series: E36, E46

4 = 0492326 Sleeve

NOTE: (Spacer sleeve) For installing the ball joint, series: E31, E36, E38, E39, E46, E65, E66, E85

3 = 0492325 Spindle

NOTE: (Spindle with thrust nut) Replaced by 33 3 010/0 496 552
