SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 16 08 (476)

Consisting of:

3 = 0496555 Nut

NOTE: (nut M12x1.5 (high wall))

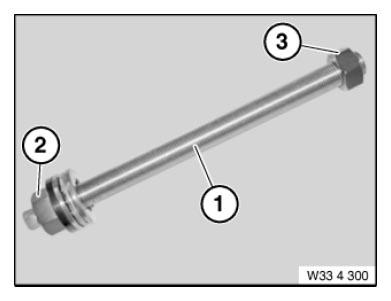

Fig 1: Identifying Spindle (333010)
G06876315Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0496553 Spindle

NOTE: (spindle TR12)

2 = 0496554 Nut

NOTE: (nut TR12 with thrust bearing)
