Storage Location

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

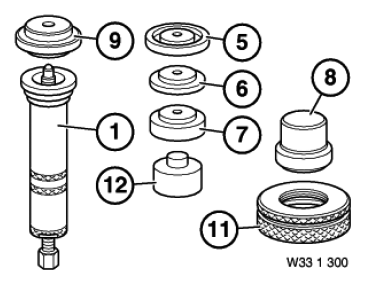

Fig 1: Identifying Extractor (331300)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

2 = 0492098 Washer

NOTE: (Disc) Replaced by 33 1 311.(0 492 107)

3 = 0492099 Washer

NOTE: (Disc) Replaced by 33 1 311.(0 492 107)

4 = 0492100 Washer

NOTE: (Disc) Replaced by 33 1 311.(0 492 107)

1 = 0492097 Connector

NOTE: (basic body) For transmission S5D 260Z, S5D 310Z and S5D 320Z;

5 = 0492101 Synchronizing key

NOTE: (Synchronizing key (old))

6 = 0492102 Synchronizing key

= 0492103

7 = 0492103 Synchronizing key

8 = 0492104 Synchronizing key

9 = 0492105 Synchronizing key

NOTE: For rear axle final drive and for installation of the camshaft sprocket on the crankshaft (M70)

1 = 0492107 Washer

NOTE: (washer)

2 = 0492108 Synchronizing key

NOTE: For pulling the bearing inner race off the drive flange - Series: E36/5
