SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 18 08 (482)

Consisting of:

1 = 0496500 Washer

NOTE: Removing rubber mount

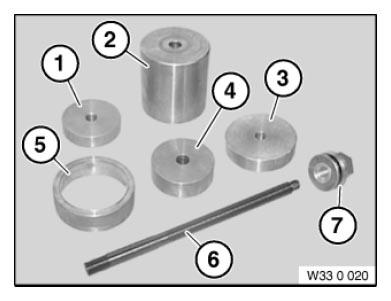

Fig 1: Identifying Device (330020)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0496501 Bush

NOTE: Removing rubber mount

3 = 0496502 Washer

NOTE: (Shaped washer) Installing rubber mount

4 = 0496503 Washer

NOTE: Installing rubber mount

5 = 0496504 Guide

NOTE: (Guide bush) for pulling in rubber mount

6 = 0496505 Spindle

NOTE: (Spindle M12x1.5) spindle length 205 mm

7 = 0496506 Nut

NOTE: (Nut M12x1.5 with thrust bearing)
