SI number

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

01 24 06 (309)

Consisting of:

1 = 0495817 Basic body

NOTE: (basic body)

2 = 0495818 Support

NOTE: (telescopic supports) 4 pieces

3 = 0495819 Adapter

NOTE: (take-up adapter U-section (2 pieces))

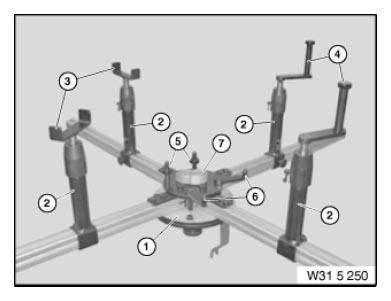

Fig 1: Identifying Fixture (315250)

Courtesy of BMW OF NORTH AMERICA, INC.

4 = 0495820 Adapter

NOTE: (take-up adapter (2 pieces))

5 = 0495821 Adapter

NOTE: (take-up adapter for bore holes (2 pieces))

6 = 0495822 Adapter

NOTE: (take-up adapter for bore holes (2 pieces))

7 = 0495824 Belt

NOTE: (Tensioning strap)
